Brocade Communications Systems MLX Series - Cable Cinch with Four Mrj21 Cables; Cable Cinch with Five Mrj21 Cables

Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 305
53-1002373-02
mRJ21 procedures
5
Cable cinch with four mRJ21 cables
Four mRJ21 cables may be secured as shown in Figure 214.

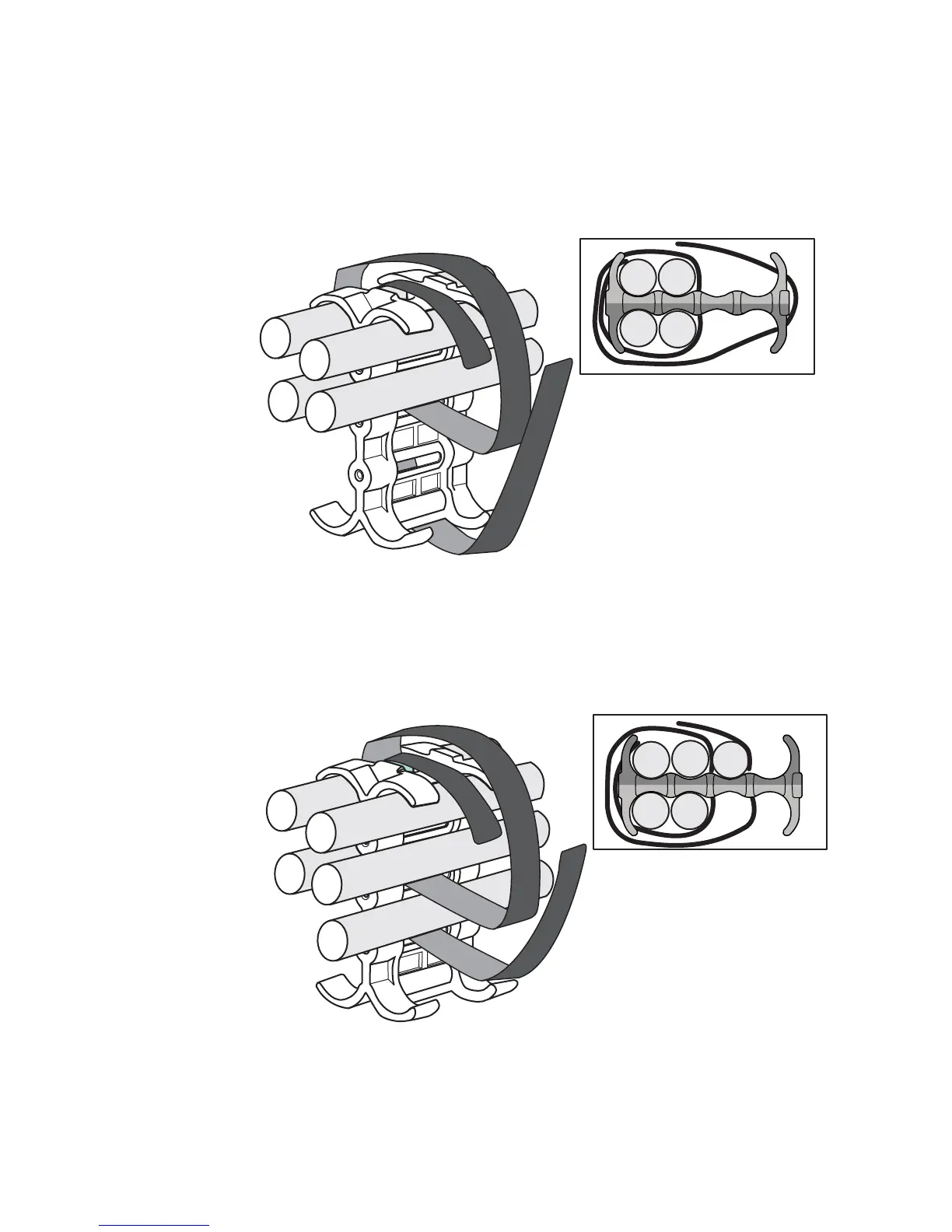

FIGURE 214 Four mRJ21 cables
Cable cinch with five mRJ21 cables
Five mRJ21 cables may be secured as shown in Figure 215.
FIGURE 215 Five mRJ21 cables
