Installing a Brocade MLXe-32 router
2
Installing power supplies in a Brocade MLXe-32 router
DANGER
High Touch Current. Earth connection is essential before connecting supply.
Follow these steps to install a power supply in a Brocade MLXe-32 router.
1. Remove the blank power supply faceplate.
2. Remove the power supply from the packaging.
3. Insert the power supply into the slot, using the guides on each side of the slot. Refer to
Figure 100.

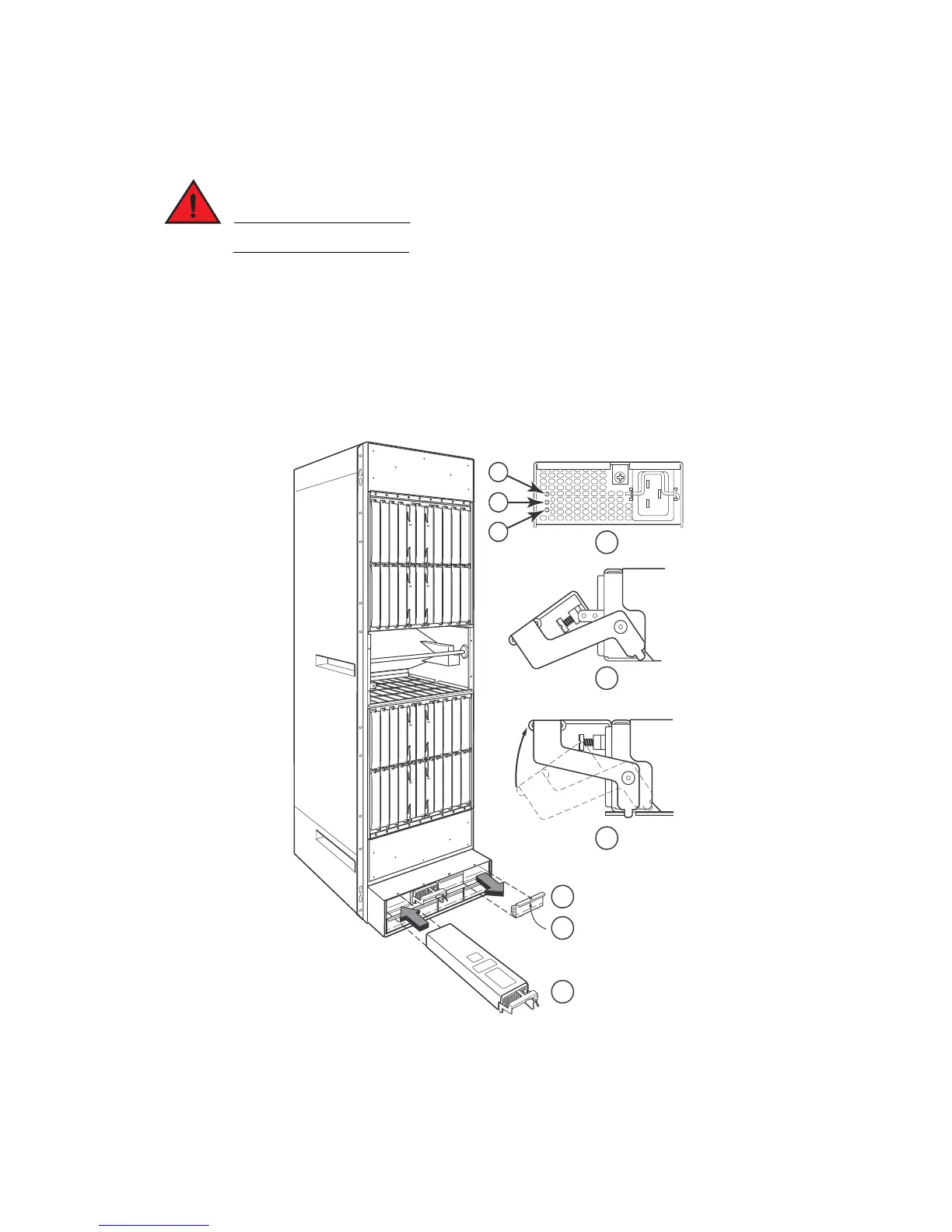

FIGURE 100 Installing a power supply in a Brocade MLXe-32 router
1 Power supply indicators 6 Latch handle locked
2 AC OK 7 Power supply blank cover
3 DC OK 8 Pull down on plunger to remove
4 ALM 9 Power supply
5 Latch handle open
Pwr
Active
Pwr
Active
Pwr
Active
Pwr
Activ e
Pwr
Active
Pwr
Active
Pwr
Active
Pwr
Activ e
AC OK
DC OK
ALM
5
6
7
8
9
1
2
3
4
