Cable cinch with six groups of RJ45 cables
36 RJ45 cables, in six groups, may be secured as shown in Figure 224.

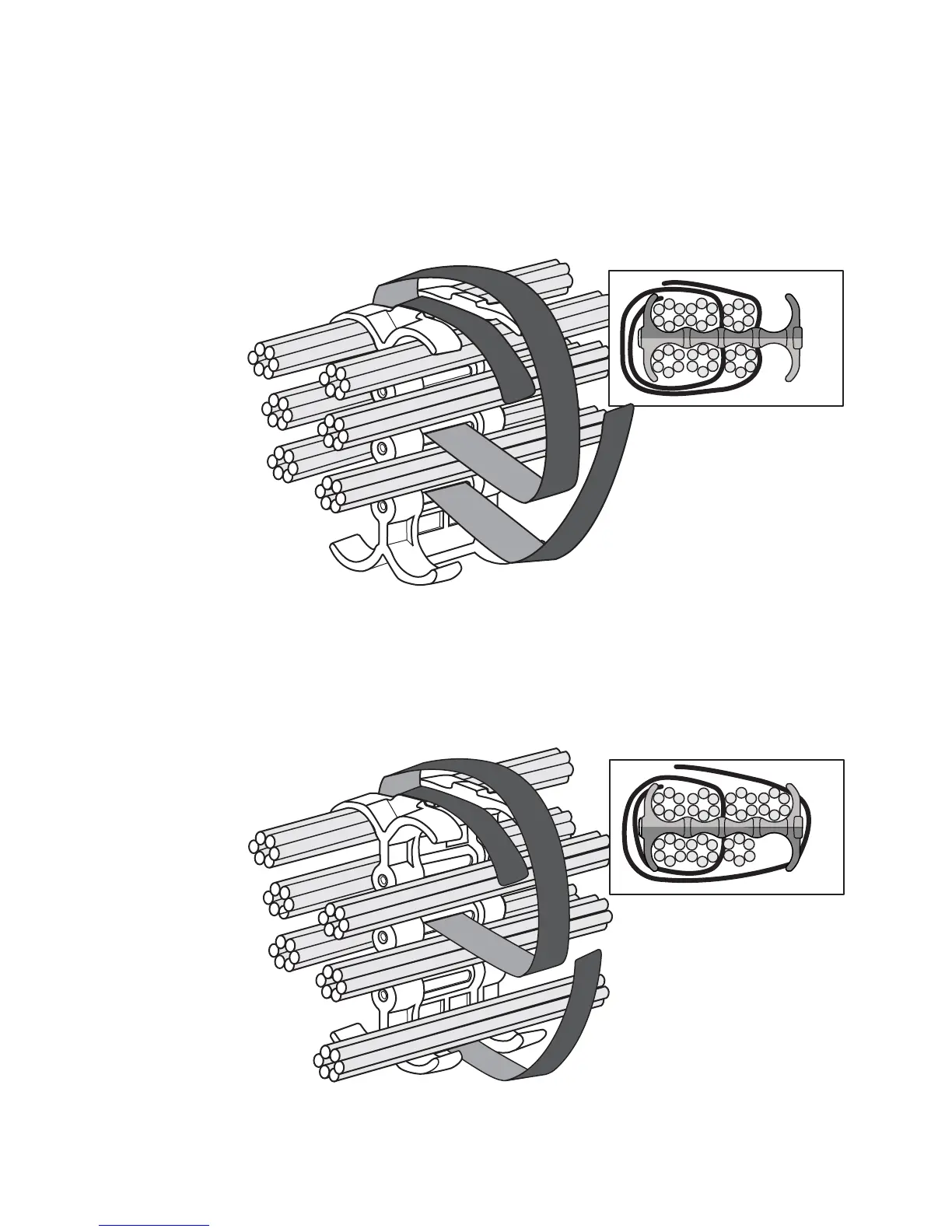

FIGURE 224 36 RJ45 cables in six groups
Cable cinch with seven groups of RJ45 cables
42 RJ45 cables, in seven groups, may be secured as shown in Figure 225.
FIGURE 225 42 RJ45 cables in seven groups
