Installing a Brocade MLXe-16 router
2

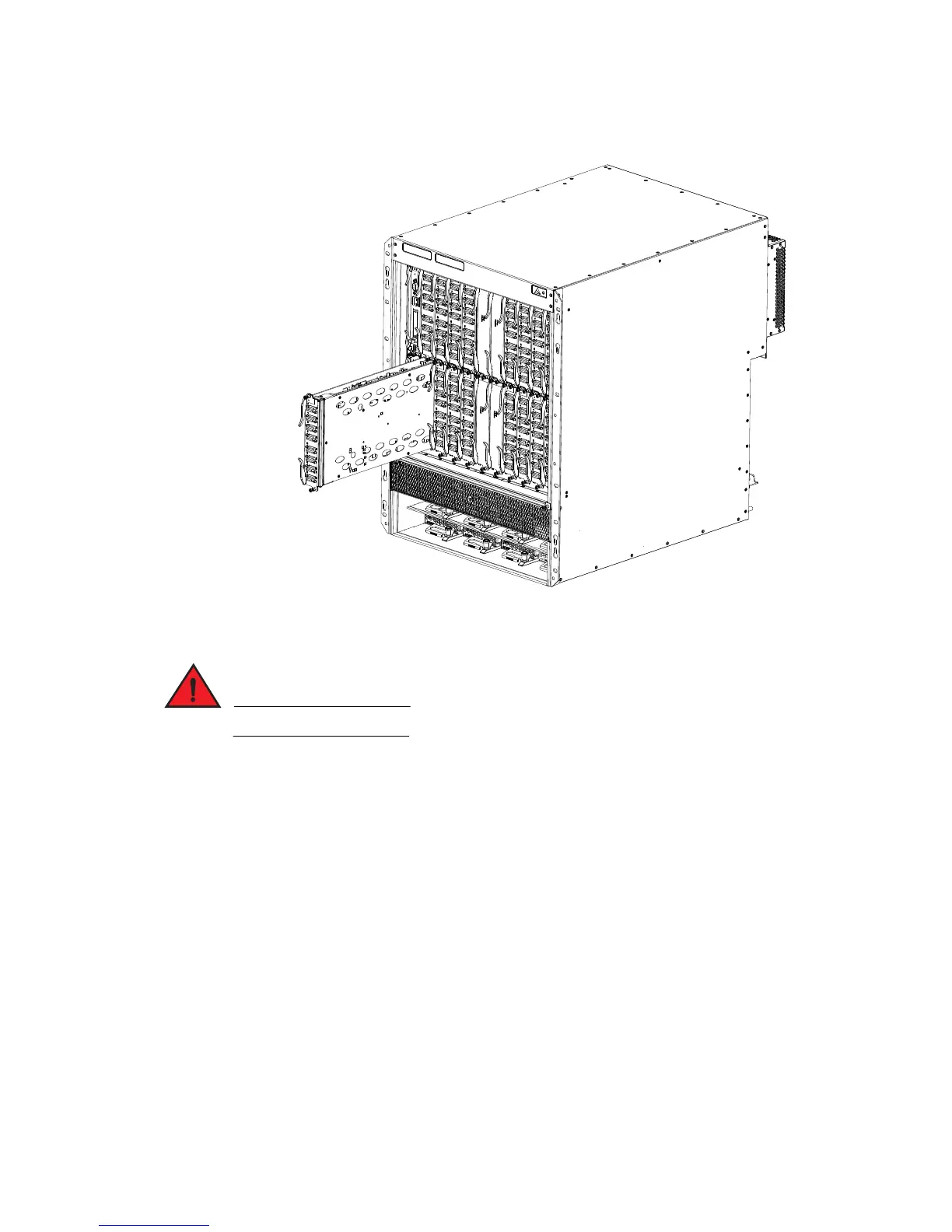

FIGURE 60 Installing a module in a Brocade MLXe-16 router
Installing power supplies in a Brocade MLXe-16 router
DANGER
High Touch Current. Earth connection is essential before connecting supply.
Follow these steps to install a power supply in a Brocade MLXe-16 router.
1. Remove the power supply slot blank.
2. Remove the power supply from the packaging.
3. Insert the power supply into the slot, using the guides on either side of the slot. Refer to
Figure 61.
