154 Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide53-1002373-02
Installing 2x100GbE interface modules in Brocade MLX routers
3

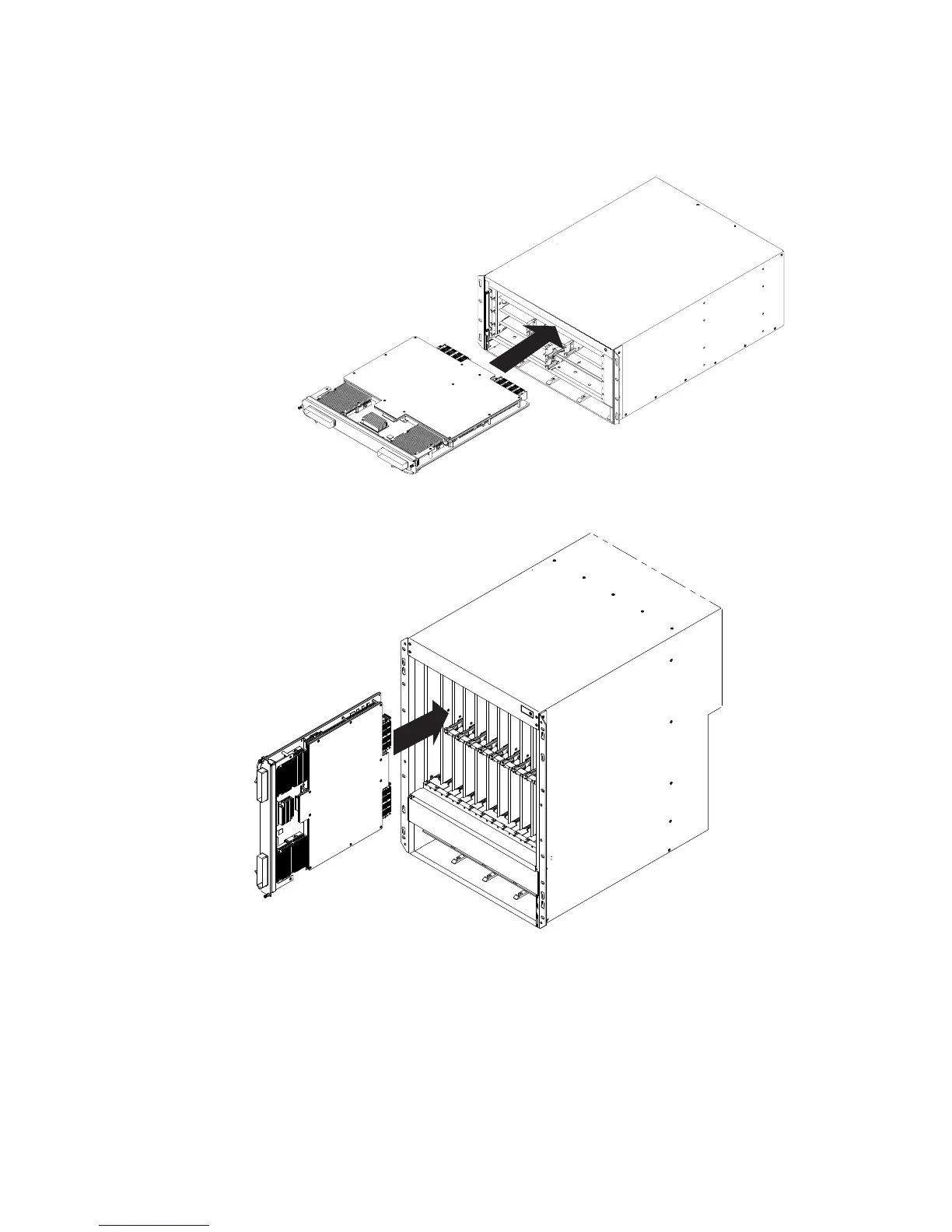

FIGURE 107 Installing 2x100G modules in a 4- or 8-slot device (4-slot shown)
FIGURE 108 Installing 2x100G modules in a 16- or 32-slot device (16-slot shown)
