Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 177
53-1002373-02
Installing a Brocade MLX-16 router
3

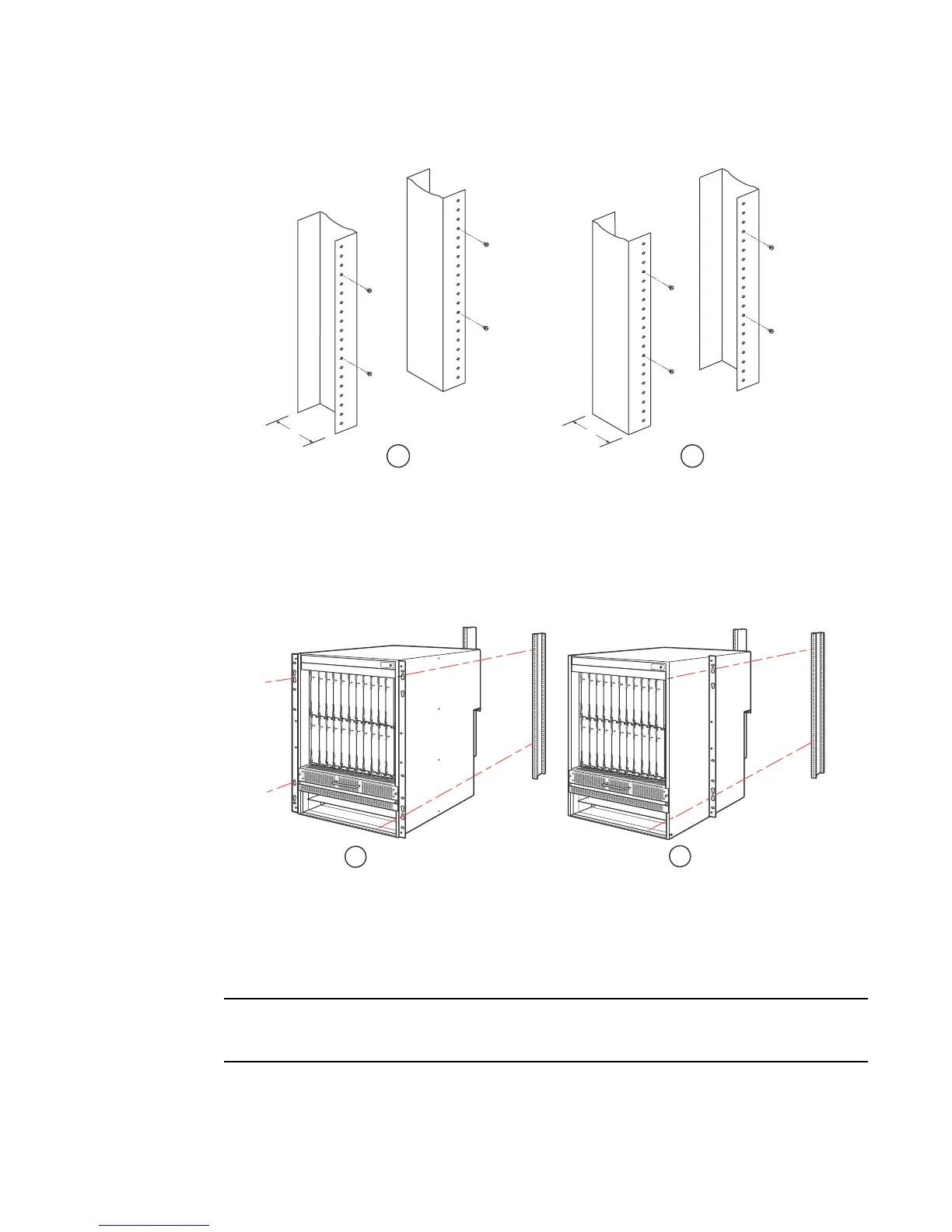

FIGURE 125 Positioning the mounting screws in the rack posts
3. Starting at the bottom of the rack, mount the router as shown in Figure 126. With two or more
people lifting the router, slip the wide portion of each keyhole slot over the corresponding
mounting screw in the rack post.
FIGURE 126 Mounting the Brocade MLX-16 router in a rack
4. Slide the router down so that the mounting screw heads are in the narrow portion of the
keyhole slots.
5. Tighten the screws to secure the router in place. For extra support, use additional screws.
NOTE
For better grounding of the router to the rack, attach the router using star washers. You should also
use star washers with any single-hole grounding lugs to keep the lugs from rotating.
Repeat step 2 through step 5 to mount each router in the rack.
1 Unequal flange equipment rack 2 Network equipment rack
1 Front-mount configuration 2 Mid-mount configuration
5"
3"
1 2
1
2
