Hardware features
1
Brocade MLXe-8 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
• Up to three switch fabric modules.
• Up to eight interface modules.
• Up to four power supplies (AC or DC).
For a detailed list of components that ships with each router, refer to Appendix A, “Brocade MLXe
Chassis bundles”.

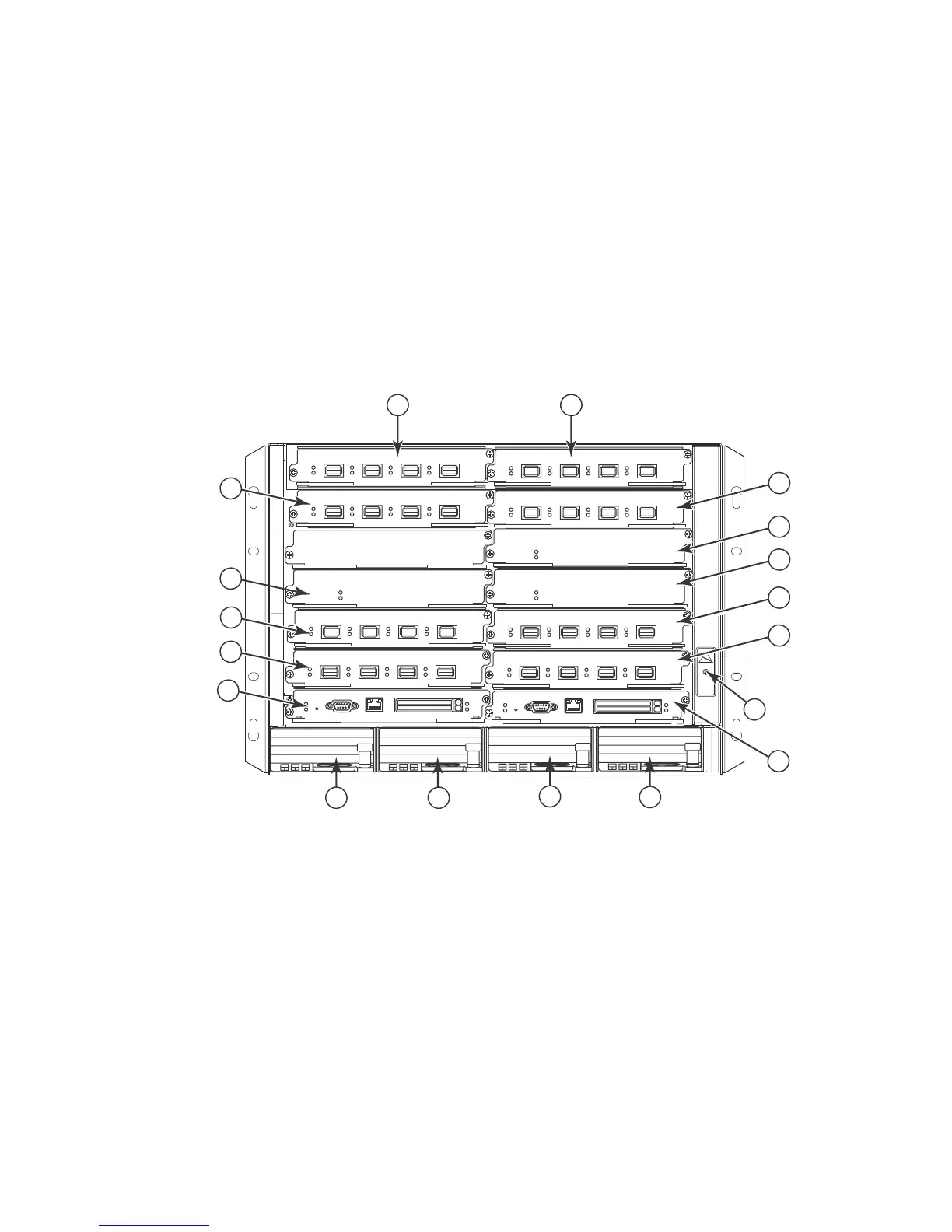

Figure 2 displays the Brocade MLXe-8 router.
FIGURE 2 Brocade MLXe-8 router
14 15
16
17
1 2
8
10
12
6
3
9
7
5
4
11
18
13
1 Interface slot 1 6 Switch fabric slot 2 11 Interface slot 8 16 Power supply slot 3
2 interface slot 2 7 Switch fabric slot 3 12 Management slot 1 17 Power supply slot 4
3 Interface slot 3 8 Interface slot 5 13 Management slot 2 18 ESD connector
4 Interface slot 4 9 Interface slot 6 14 Power supply slot 1
5 Switch fabric slot 1 10 Interface slot 7 15 Power supply slot 2
