Installing a Brocade MLX-32 router
3
2. Route cables from slots #20 and #19 down through comb A. Refer to Figure 155.
3. Route cables from slots #22 and #21 down through comb B.
4. Route cables from slots #24 and #23 down through comb C.
Cable routing for the lower-right quadrant
1. Route cables from slots #32 and #31 directly to the right through the side comb. Refer to
Figure 156.

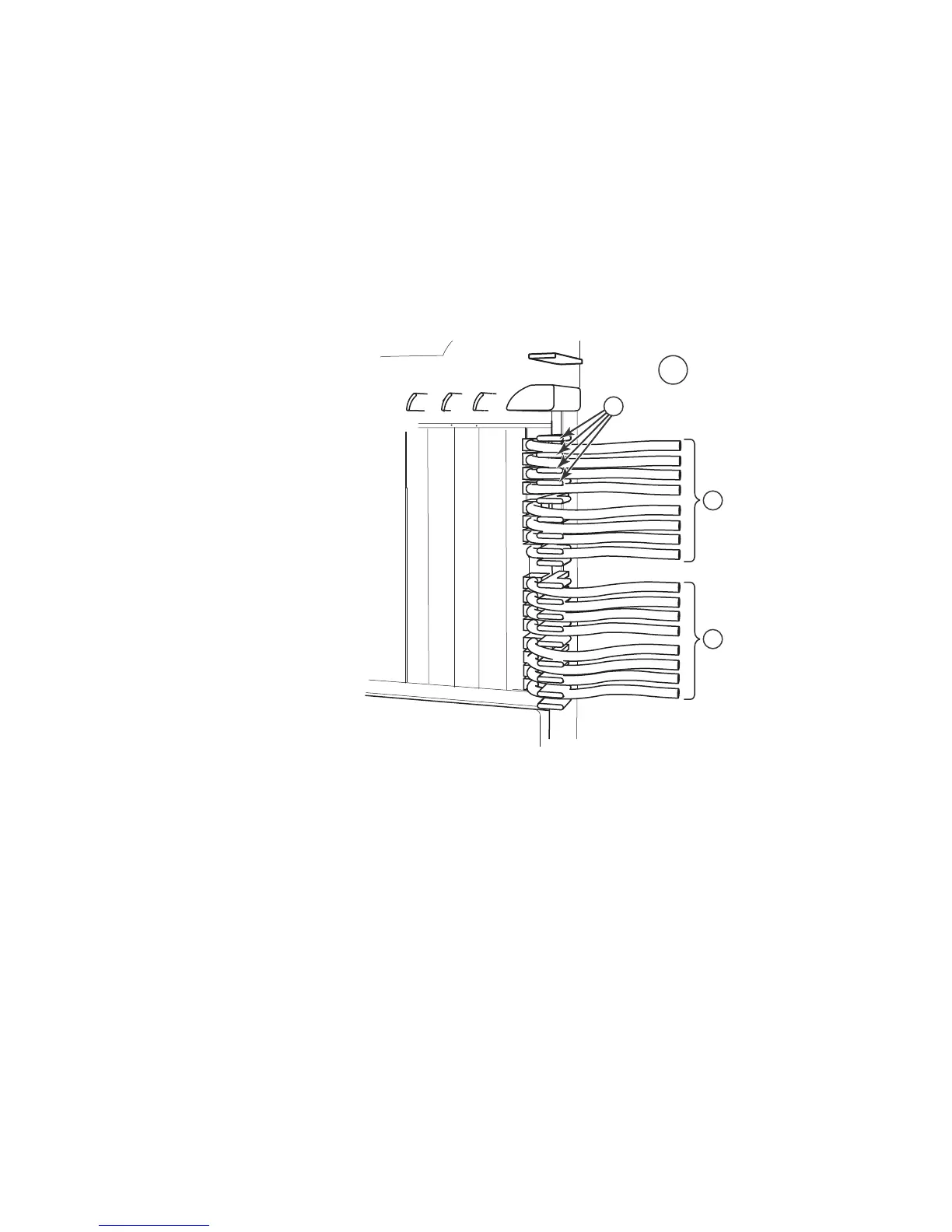

FIGURE 156 Routing the lower-right quadrant cables
1 Lower right quadrant 3 Cables from slot #32
2 Cables from slot #31 4 Side combs (18)
2
1
3
4
