Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 225
53-1002373-02
Installing a Brocade MLX-32 router
3

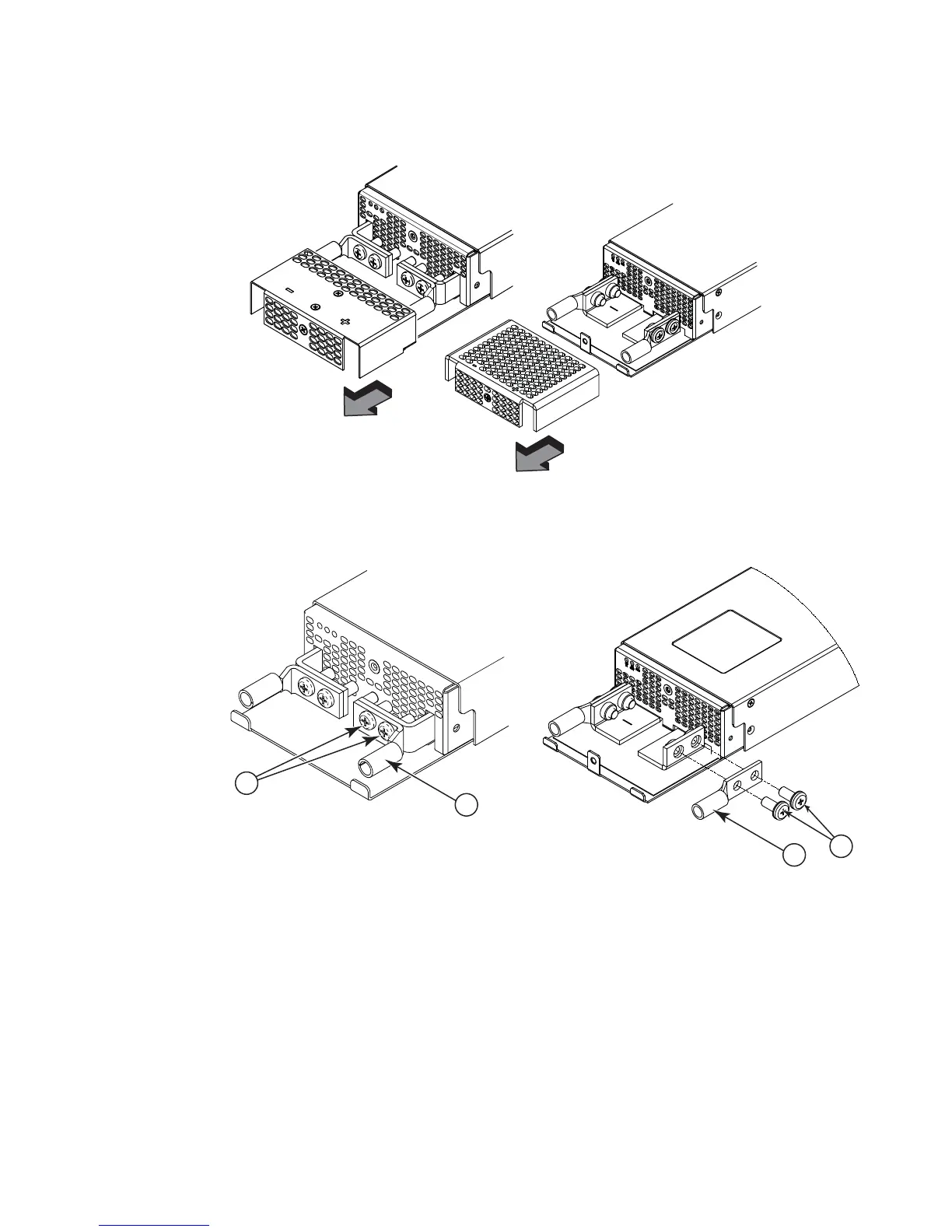

FIGURE 161 Removing the safety cover
2. Use a #2 Phillips screwdriver to unscrew the power lugs. Refer to Figure 162.
FIGURE 162 Removing the power lugs (2400W power supply and 3000W power supply displayed)
3. Crimp the correct AWG power supply wire into the power lugs:
#4 AWG wire for 2400 W power supply
#2 AWG for 3000 W power supply
Refer to Figure 162.
1 Power lug screws 2 Power lug
1
2
2
1
