Brocade Communications Systems MLX Series User Manual

10 Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide
53-1002373-02
Hardware features
1
Brocade MLX-16 router components
You can install the following components in the router slots:
• Up to two management modules (one active and one redundant).
• Up to four switch fabric modules.
• Up to 16 interface modules.
• Up to eight power supplies (AC or DC).

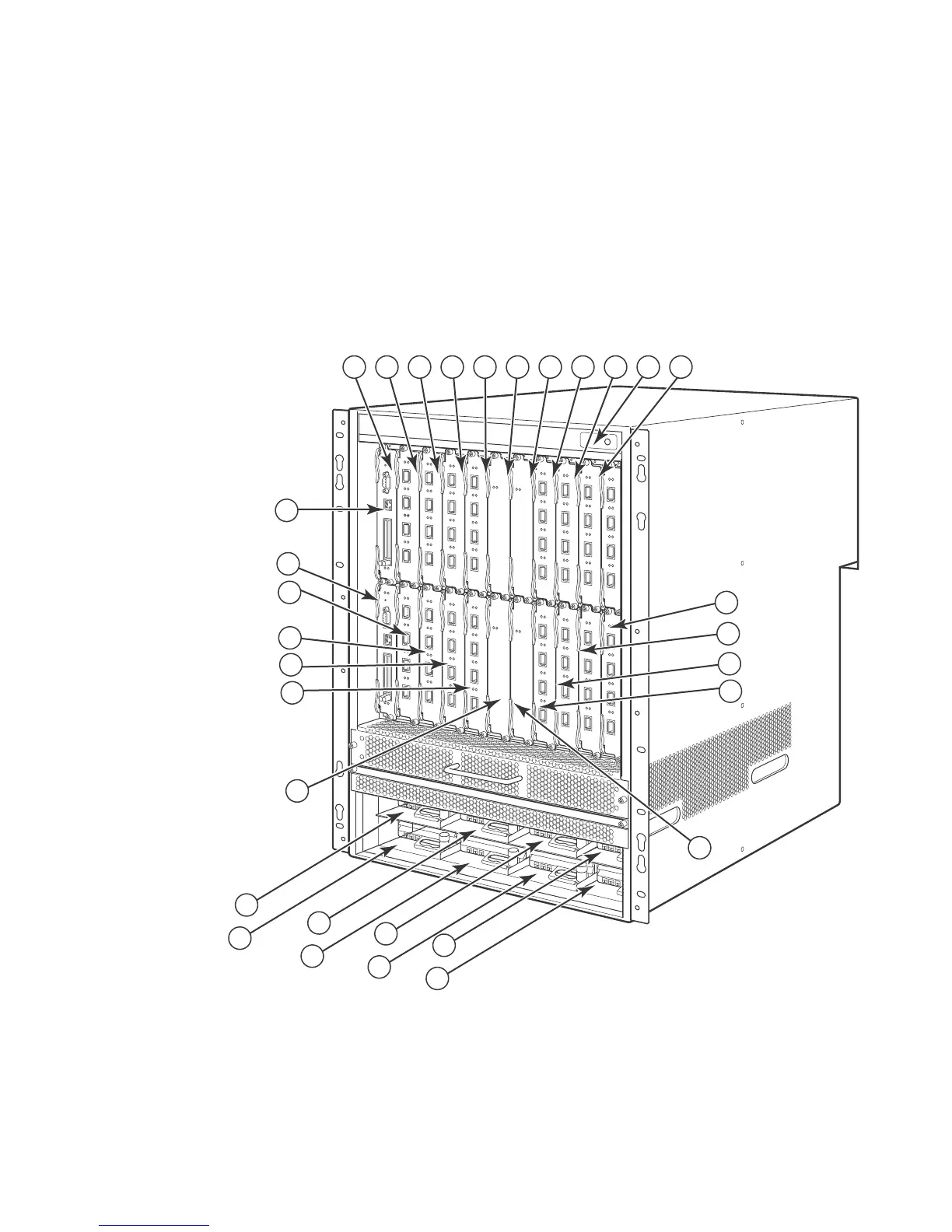

Figure 7 displays the Brocade MLX-16 router.
FIGURE 7 Brocade MLX-16 router
1-16 Interface slots 1-16 20 Switch fabric slot 4 24-31 Power supplies
17 Switch fabric slot 1 21 Management slot 1
18 Switch fabric slot 2 22 Management slot 2
19 Switch fabric slot 3 23 ESD connector
12
13
14
15
16
17
18
19
20
21
22
23
1
2
3
4
5
6
7
8
9
10
11
24
28
25
29
26
30
27
31
