Installing a Brocade NetIron XMR 16000 router
4

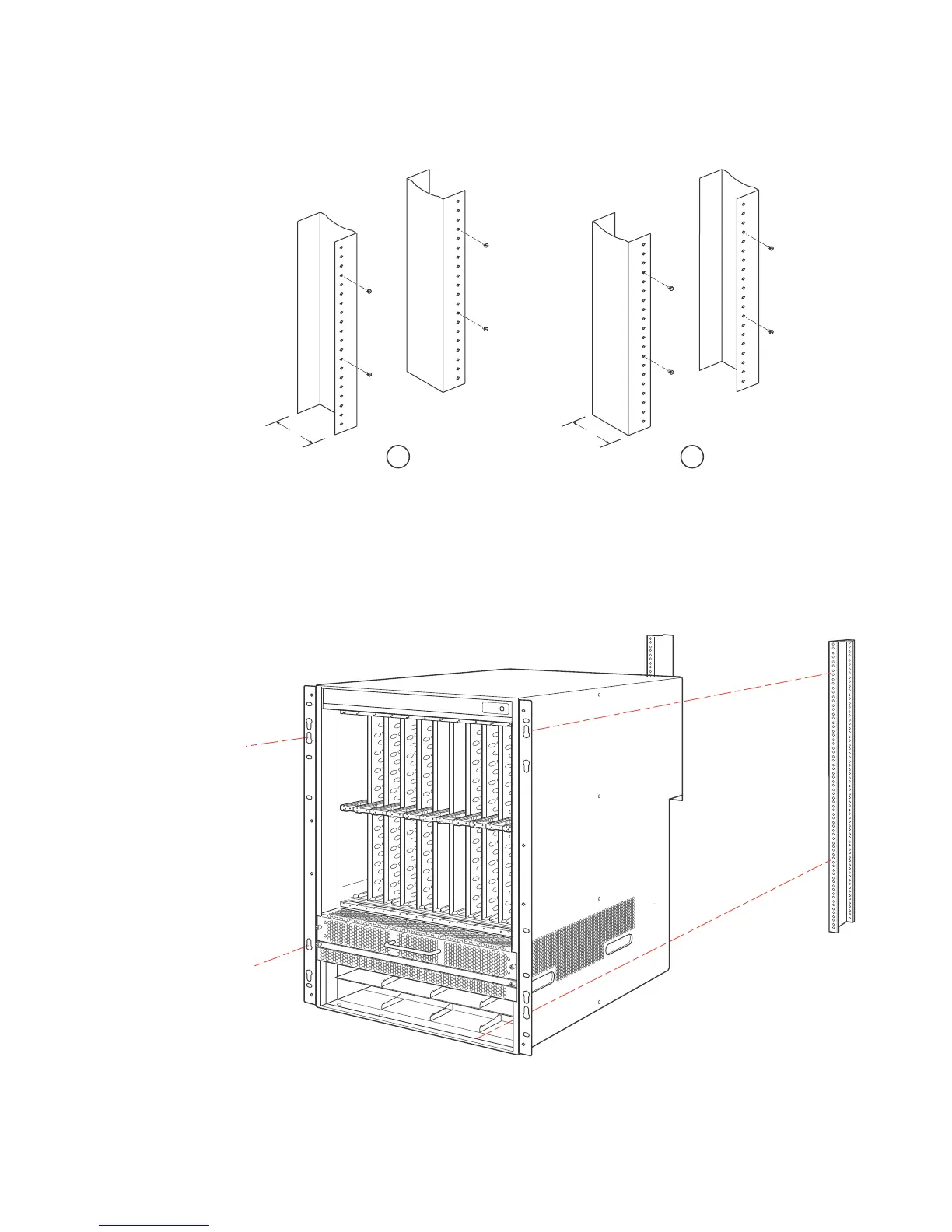

FIGURE 184 Positioning the mounting screws in a rack
3. Mount in the router that will have the lowest position in the rack first, as shown in Figure 185.
With two or more people lifting the router, slip the wide portion of each keyhole slot over the
corresponding screw in the rack.
FIGURE 185 Mounting the Brocade NetIron XMR 16000 router in a rack (front-mount configuration)
4. Slide the router down so that the screw heads are in the narrow portion of the keyhole slots.
1 Unequal flange equipment rack 2 Network equipment rack
5"
3"
1 2
