Installing a Brocade NetIron XMR 16000 router
4
Connecting AC power
AC power is supplied through a power cord connected to the power supply installed in the Brocade
NetIron XMR 16000 router.
Follow these steps to connect the AC power source.
NOTE
For the NEBS-compliant installation, AC power connections must use a surge protection device
(SPD) to protect AC power supplies from damage due to excessive power line surges.
1. Locate the power receptacles in the power supplies on the back panel.
2. Lift the cord retainer and connect an AC power cord to each power supply.
3. Snap the cord retainer over the power plug to hold it in place.

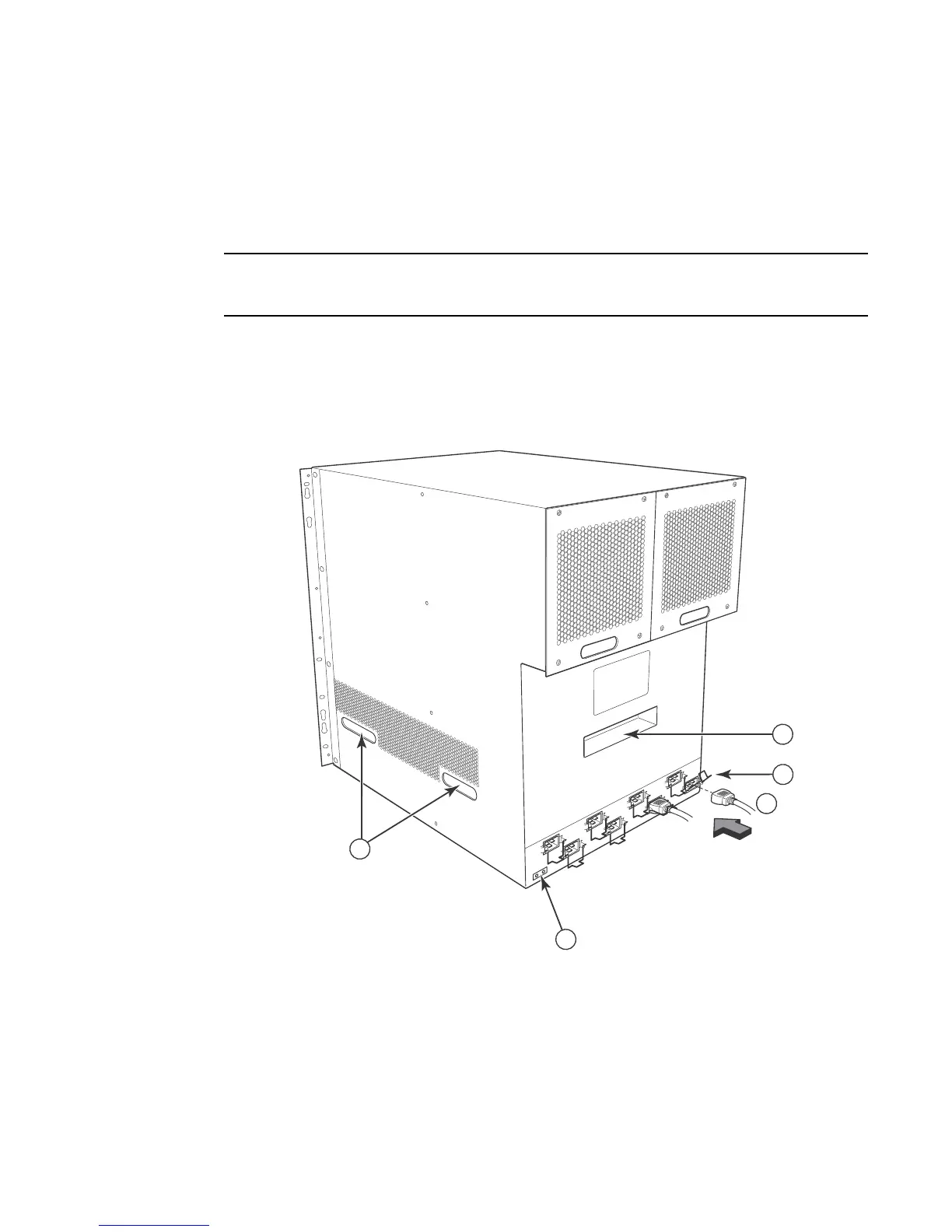

FIGURE 188 Connecting a power cord to the power supply in a Brocade NetIron XMR 16000 router
For information about powering on the system, refer to “Activating the power source” on page 297.
1 Lift handle 3 Power cord 5 Lift handles
2 Cord retainer 5 Ground point
1
2
3
4
5
