274 Brocade MLX Series and NetIron XMR Hardware Installation Guide
53-1002373-02
Installing a Brocade NetIron XMR 32000 router
4
• A 7/16 inch socket wrench attachment
Follow these steps to remove the router from the shipping crate.
1. Position the crate so that you have access to the front and the rear. There must be enough
space to the rear of the pallet to slide and remove the crate.
2. Use a power drill with Phillips and large flat-blade screwdriver attachments to remove the bolts
and screws that hold the front shipping panel in place, as shown in Figure 191. Remove the
front shipping panel and set it aside.

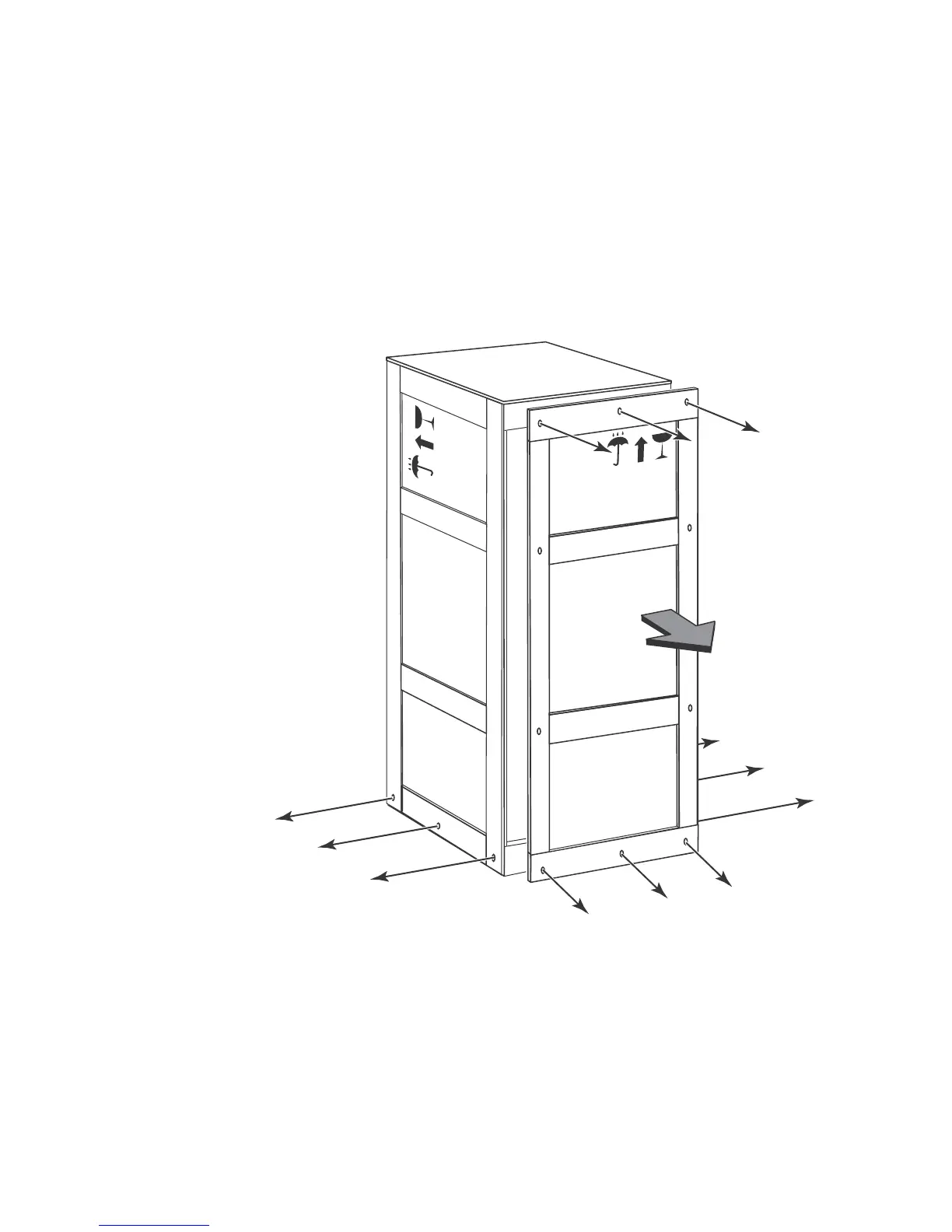

FIGURE 191 Removing bolts and screws on the shipping crate
3. Remove the remaining bolts and screws that attach the bottom of the crate to the pallet.
4. Slide the sides, top, and back of the crate backwards as one unit until it clears the pallet.
5. Save the crate (including the shipping panel) in case the router needs to be shipped again.
