Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 291
53-1002373-02
Installing a Brocade NetIron XMR 32000 router
4

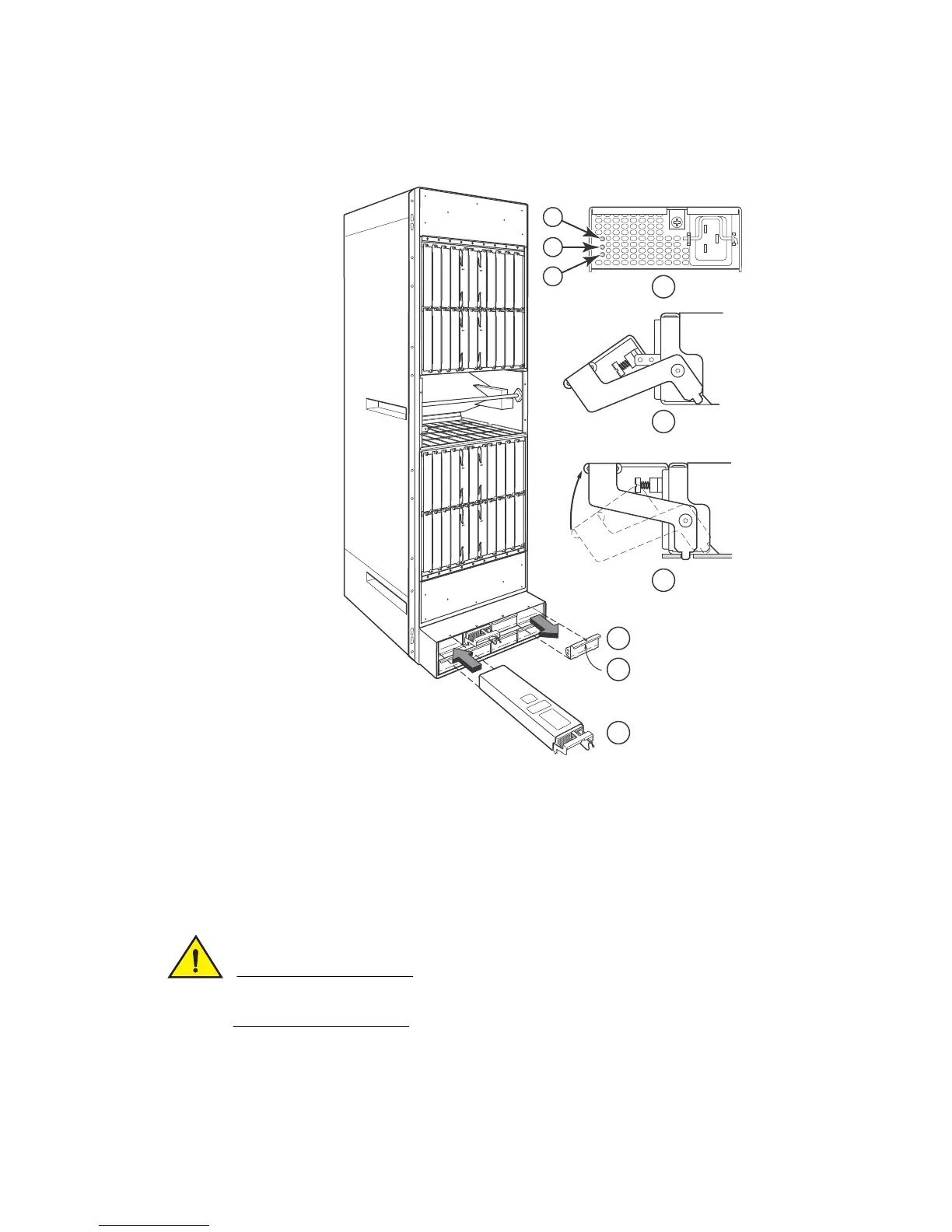

FIGURE 205 Installing a power supply in a Brocade NetIron XMR 32000 router
CAUTION
Carefully follow the mechanical guides on each side of the power supply slot and make sure the
power supply is properly inserted in the guides. Never insert the power supply upside down.
4. After the power supply is fully inserted, push the power supply front panel toward the back of
the router. This action causes the power supply connector to seat into the backplane
connector.
1 Power supply indicators 6 Latch handle locked
2AC OK 7Power supply blank cover
3 DC OK 8 Pull down on plunger to remove
4ALM 9Power supply
5 Latch handle open
Pwr
Active
Pwr
Active
Pwr
Active
Pwr
Activ e
Pwr
Active
Pwr
Active
Pwr
Active
Pwr
Activ e
AC O K
DC OK
ALM
5
6
7
8
9
1
2
3
4
