Brocade MLX Series and Brocade NetIron XMR Hardware Installation Guide 361
53-1002373-02
Replacing fan assemblies
8

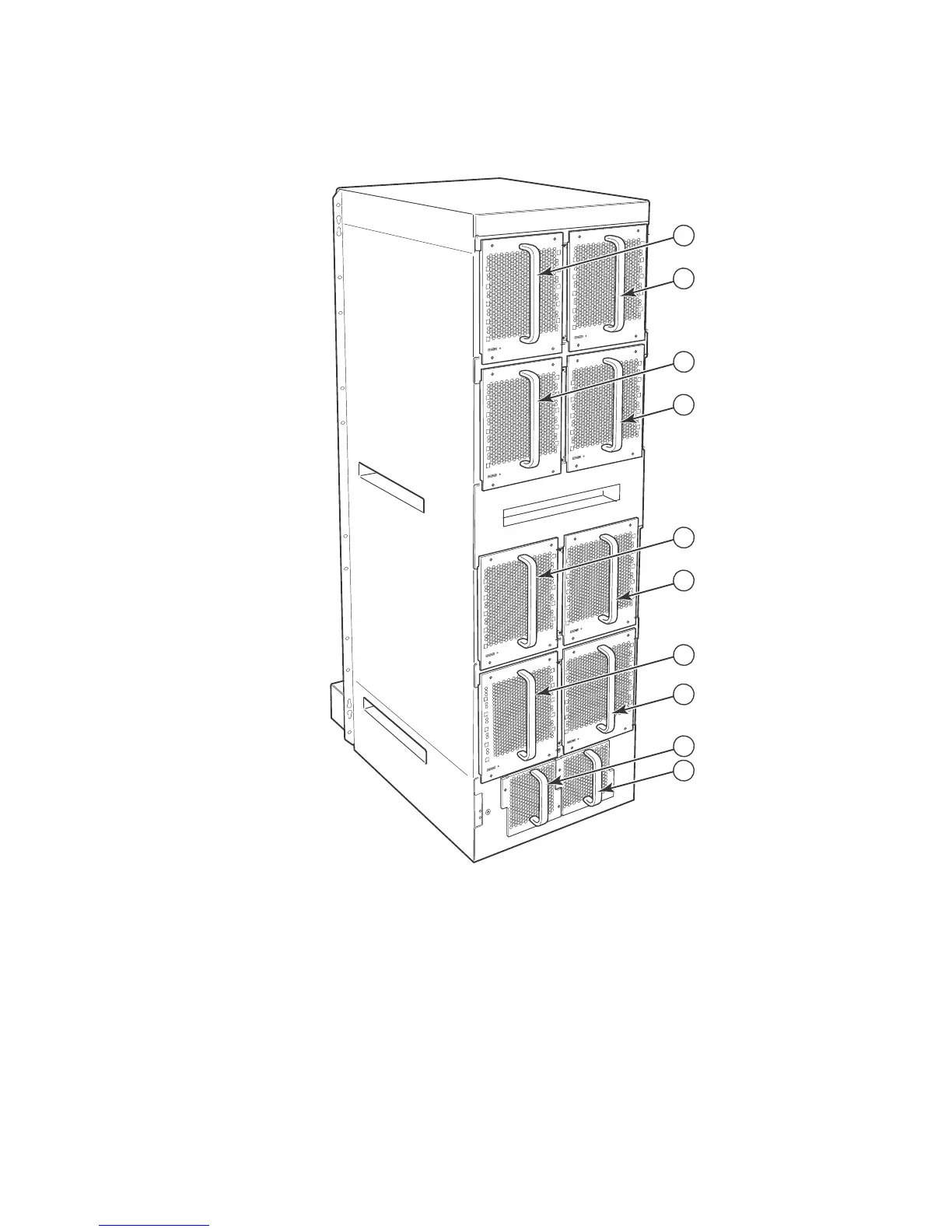

FIGURE 231 32-slot router fan assemblies
4. Insert the new fan assembly into the fan slot and push the assembly in until the faceplate is
flush with the router. Pushing the fan assembly in seats the fan connector in the router
connector.
5. Secure the fan assembly to the router by replacing and tightening the four screws (on the
upper eight fan assemblies) and the two screws (on the lower two fan assemblies).
1 Fan module 1 6 Fan module 6
2 Fan module 2 7 Fan module 7
3 Fan module 3 8 Fan module 8
4 Fan module 4 9 Fan module 9
5 Fan module 5 10 Fan module 10
2
1
4
3
6
5
8
7
10
9
