Replacing fan assemblies
8

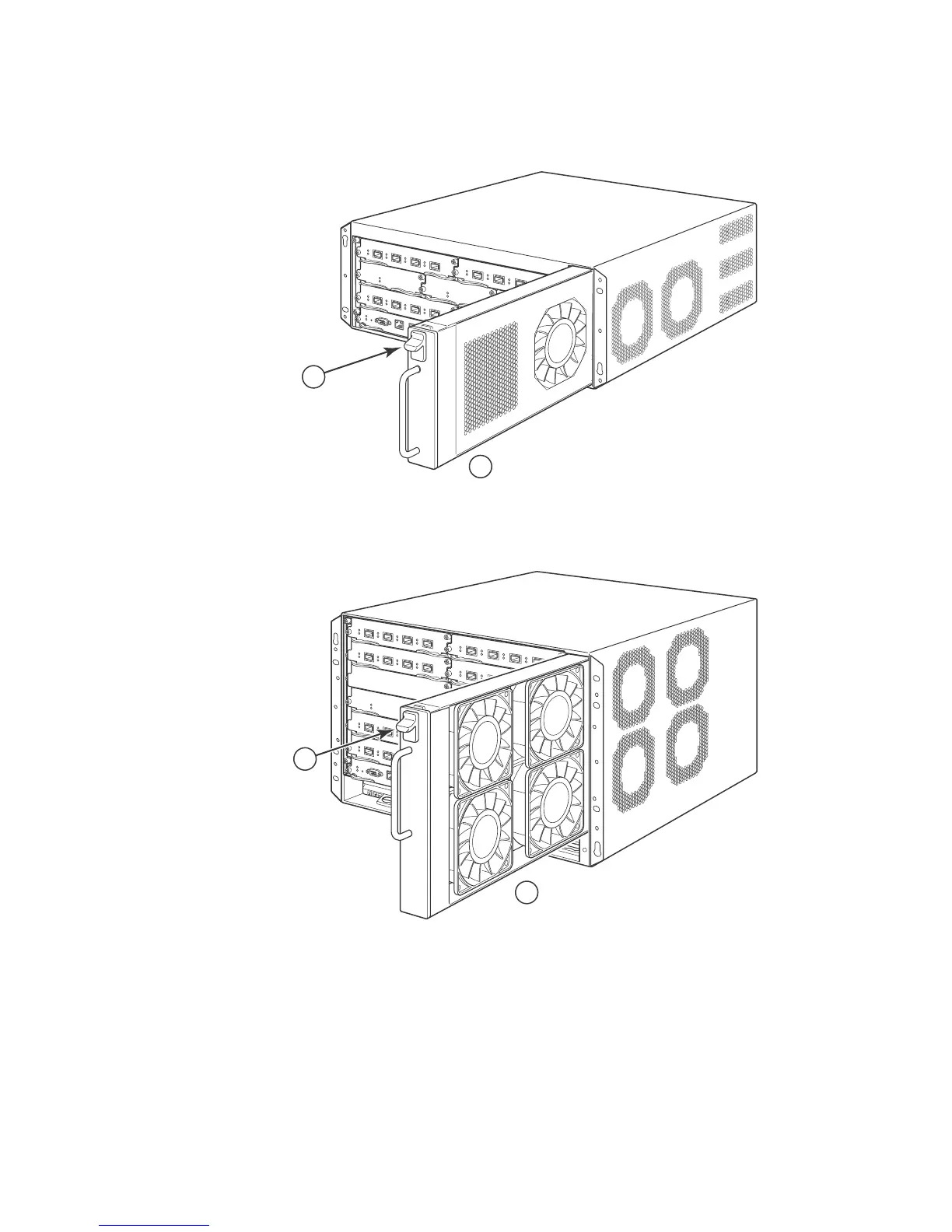

FIGURE 235 Replacing a fan tray assembly in a Brocade MLX or Brocade NetIron XMR 4-slot router.
FIGURE 236 Replacing a fan tray assembly in a Brocade MLX or Brocade NetIron XMR 8-slot router.
1 Latch release 2 Fan tray assembly
1 Latch release 2 Fan tray assembly
