Replacing fan assemblies
8

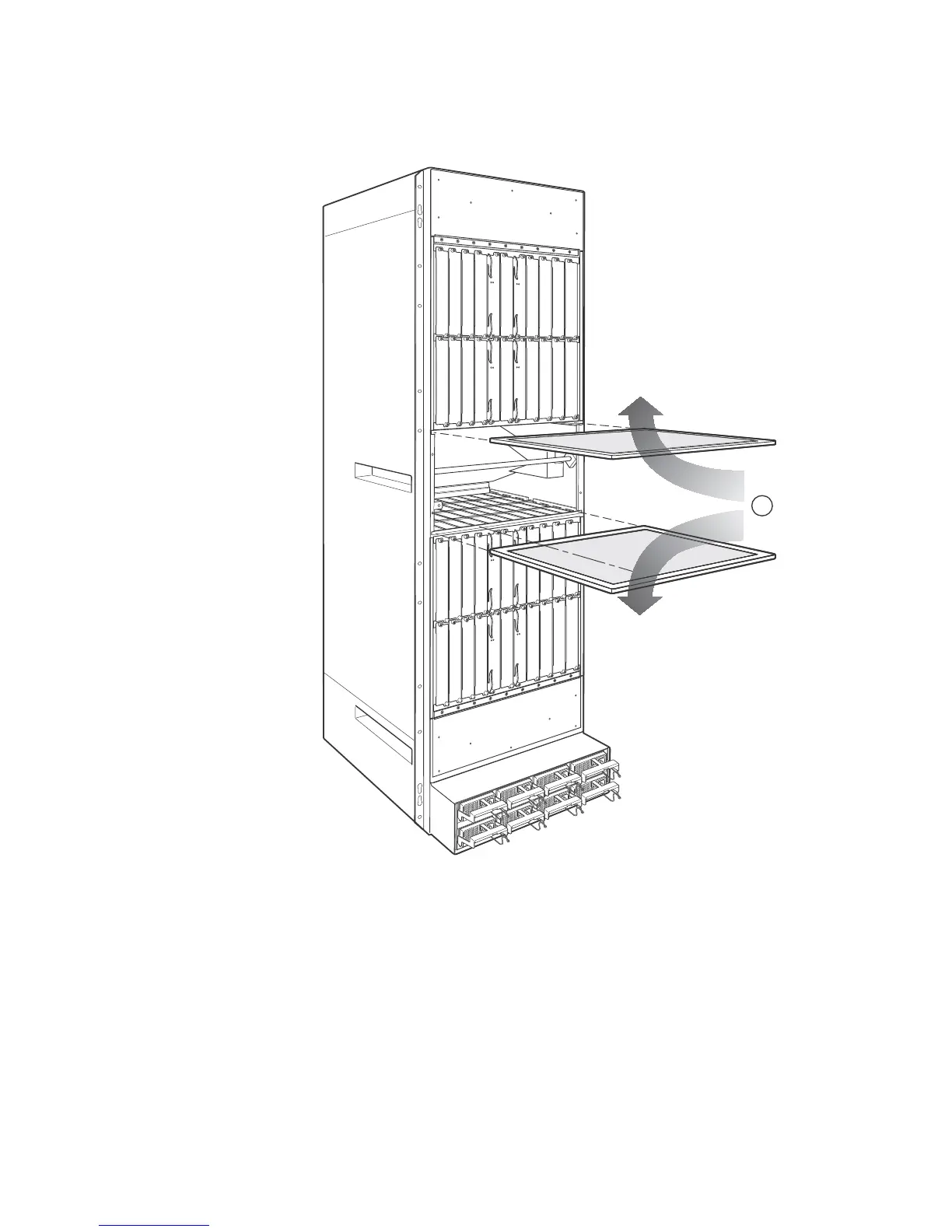

FIGURE 240 Air filter removal and replacement for 32-slot routers
Replacing the air filter in Brocade MLX and Brocade NetIron XMR 16-slot routers
Follow these steps to replace the air filter in a Brocade MLX or Brocade NetIron XMR 16-slot router.
1. Loosen the two screws in the front of the filter retainer.
2. Pull the filter retainer away from the router as shown in Figure 241.
There is a hook on the back of the retainer that is attached to the grab-strap. As you pull the
retainer out, the filter is pulled along with it.
1 Direction of airflow in device
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
Pwr
Acti ve
1
