1 - 4
Outline of Mechanism
Outline of
Mechanism
Outline of
Mechanism

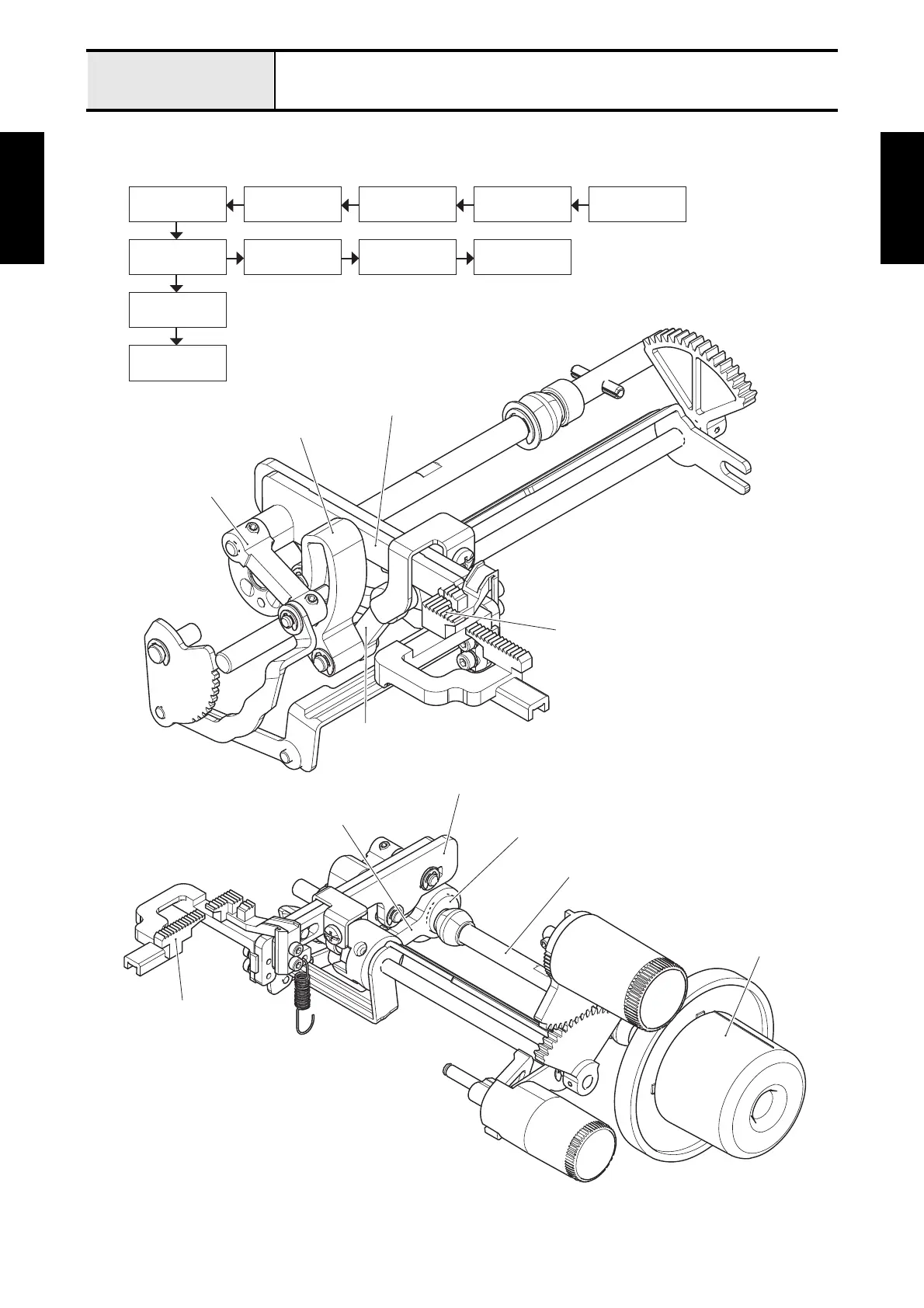

Driveline
(B) Movement of feed dog
Feed link
Feed bar
eccentric wheel
Feed rod
Driving shaft
Diferential
feed bar assy
Diferential
feed link
Diferential
feed dog
Feed bar lever
Main feed bar
Main feed dog
Pulley
Pulley
Driving shaft
Main feed dog
Feed rod
Feed bar lever
Main feed bar
Diferential feed link
Feed link
Diferential feed dog
Feed bar eccentric wheel
Diferential feed bar assy
