3 - 75
Feed module
Modules
Assembly
20

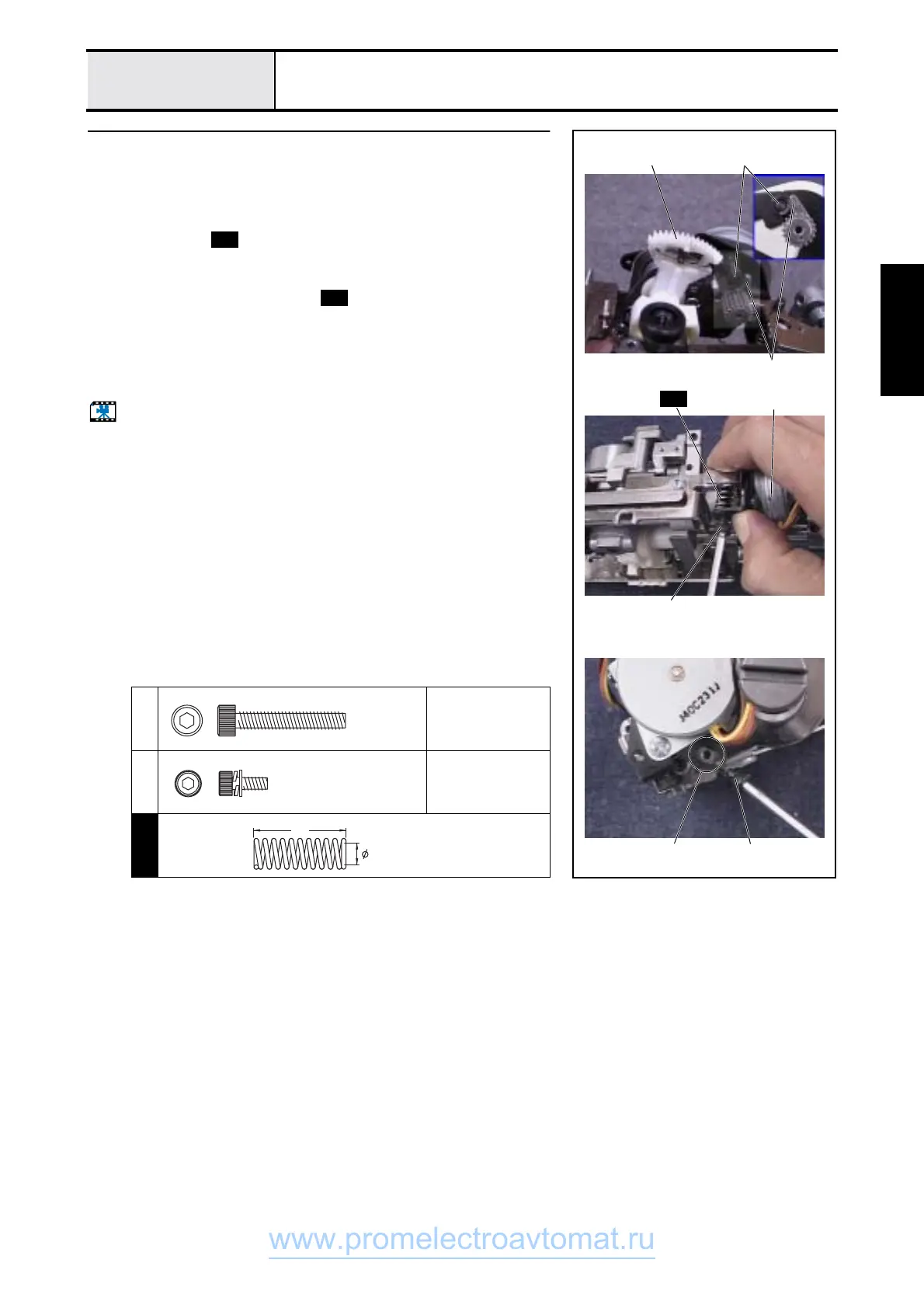

FPM holder assy. attachment
1. Turn the F pulse motor gear counterclockwise until the stopper 1 on it
touches the FPM holder assy. shaft. 2.
2. Set the feed adjuster assy. 3 to the position in the figure to the right.
3. Attach the F pulse motor assy. 4.
4. Attach spring and screw 1.
*Key point
• To prevent screw 1 from being tightened into the spacer at an
angle, compress *spring and tighten screw 1.
• Tighten screw 1 until the screw hole in the feed base comes
approximately to the center of the hole 5 in the FPM holder
assy.
5. Hand start *screw 2.
(Fully tighten after 4 - 14 "Feed adjustment.")
Start movie clip (CD-ROM version only)
1
Since the adjustment is by
the amount the screw
is tightened, there is no
specified torque.
2
Torque
Hand start
S15
23
4
5
S15
1
1
2
S15
S15
Bolt, Socket
M4X25
Color; Black
Screw
M3X8
Color; Black
21
5
SPRING
XC2537***
