2.3 Laser unit
(1) Open the back cover.
(2) Remove the two taptite cup B M4x12 screws from the back side of the side cover L and
the side cover R.

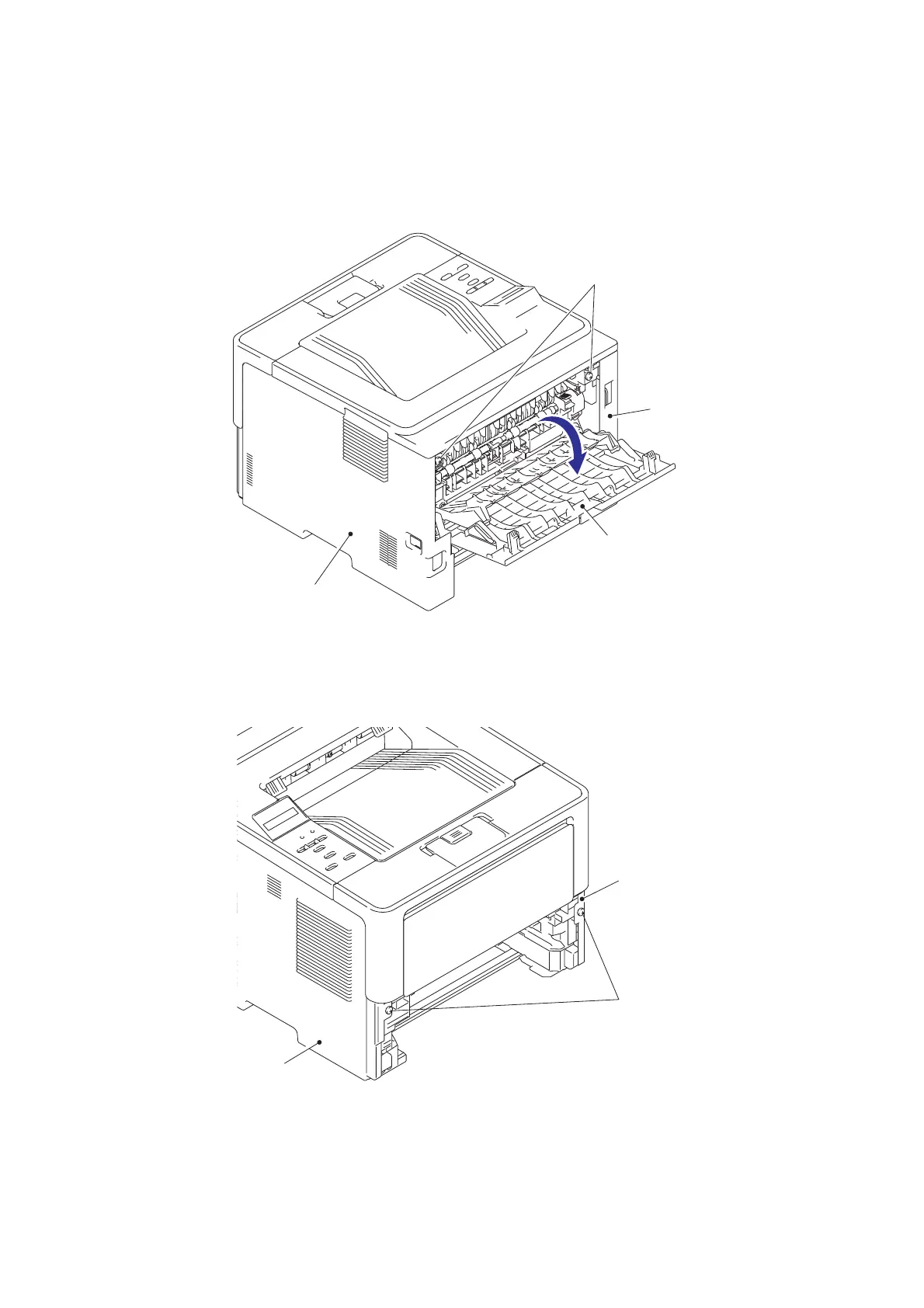

Fig. 7-9
(3) Remove the two taptite cup B M4x12 screws from the front side of the side cover L and
the side cover R.
Fig. 7-10
Back cover
Taptite cup B M4x12
Side cover L
Side cover R
Side cover R
Taptite cup B M4x12
Side cover L
