7-8
Confidential

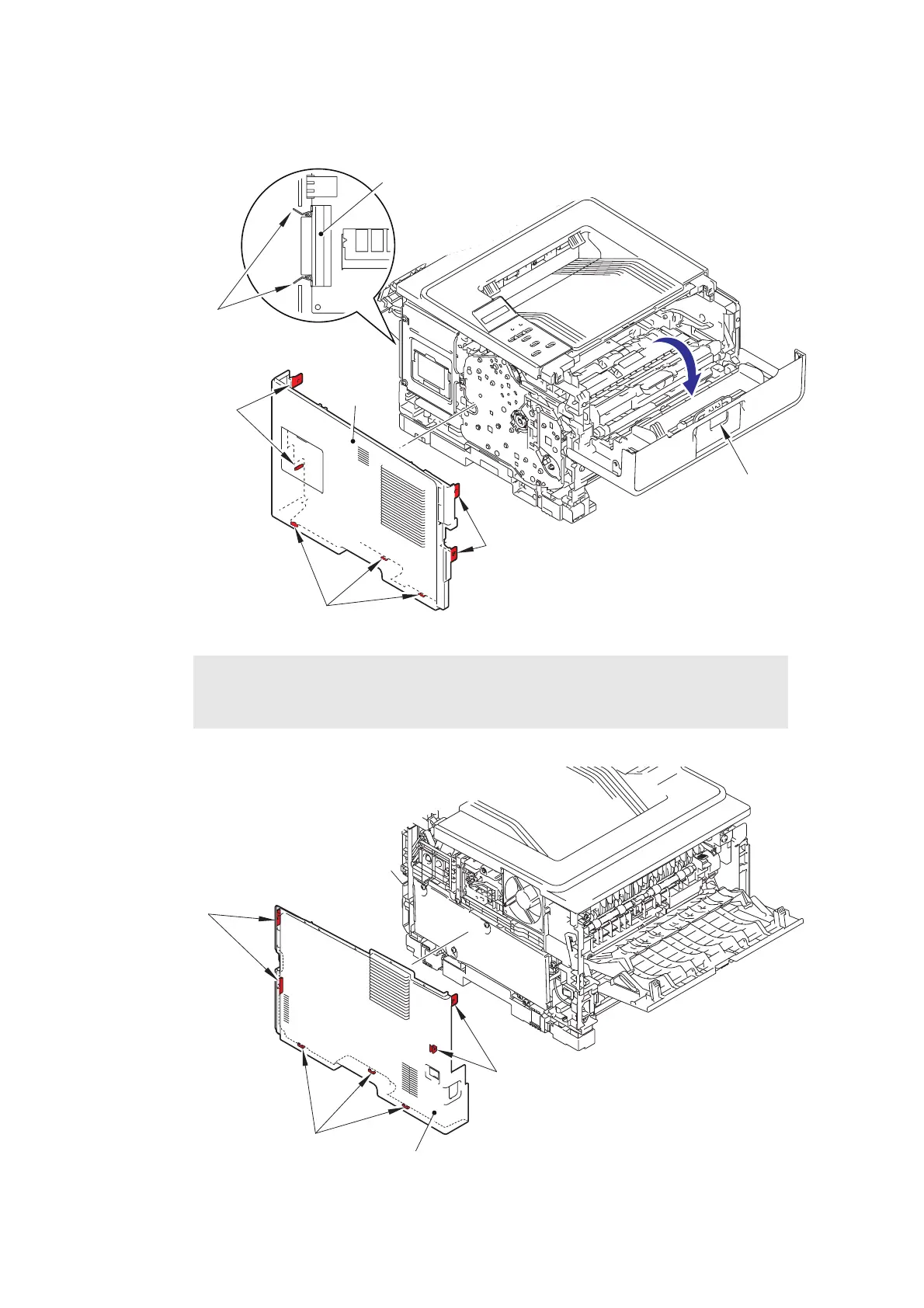

(4) Push the front cover release button, and open the front cover ASSY.
(5) Release the seven hooks, and remove the side cover L from the machine.
Fig. 7-11
(6) Release the seven hooks, and remove the side cover R from the machine.
Fig. 7-12
Assembling Note:
• For HL-5440D, raise the two locks for the parallel interface to the upright position,
and then attach the side cover L.
Parallel interface
Locks
Hooks
Side
cover L
Hooks
Front cover release
button
Hooks
Hooks
Hooks
Side cover R
Hooks
To Next Page
