(4) Remove the Screw pan M4x8 screw, the Washer spring 2-4, and the Washer 5 to remove
the LVPS ground wire from the LVPS plate lower ASSY.
(5) Remove the Inlet to release the Inlet harness ASSY from the securing fixtures.
(6) Release the LVPS heater harness from the securing fixtures.
(7) Remove the four Taptite pan (washer) B M4x12DA screws and the two Taptite cup S
M3x8 SR screws from the LVPS plate lower ASSY.

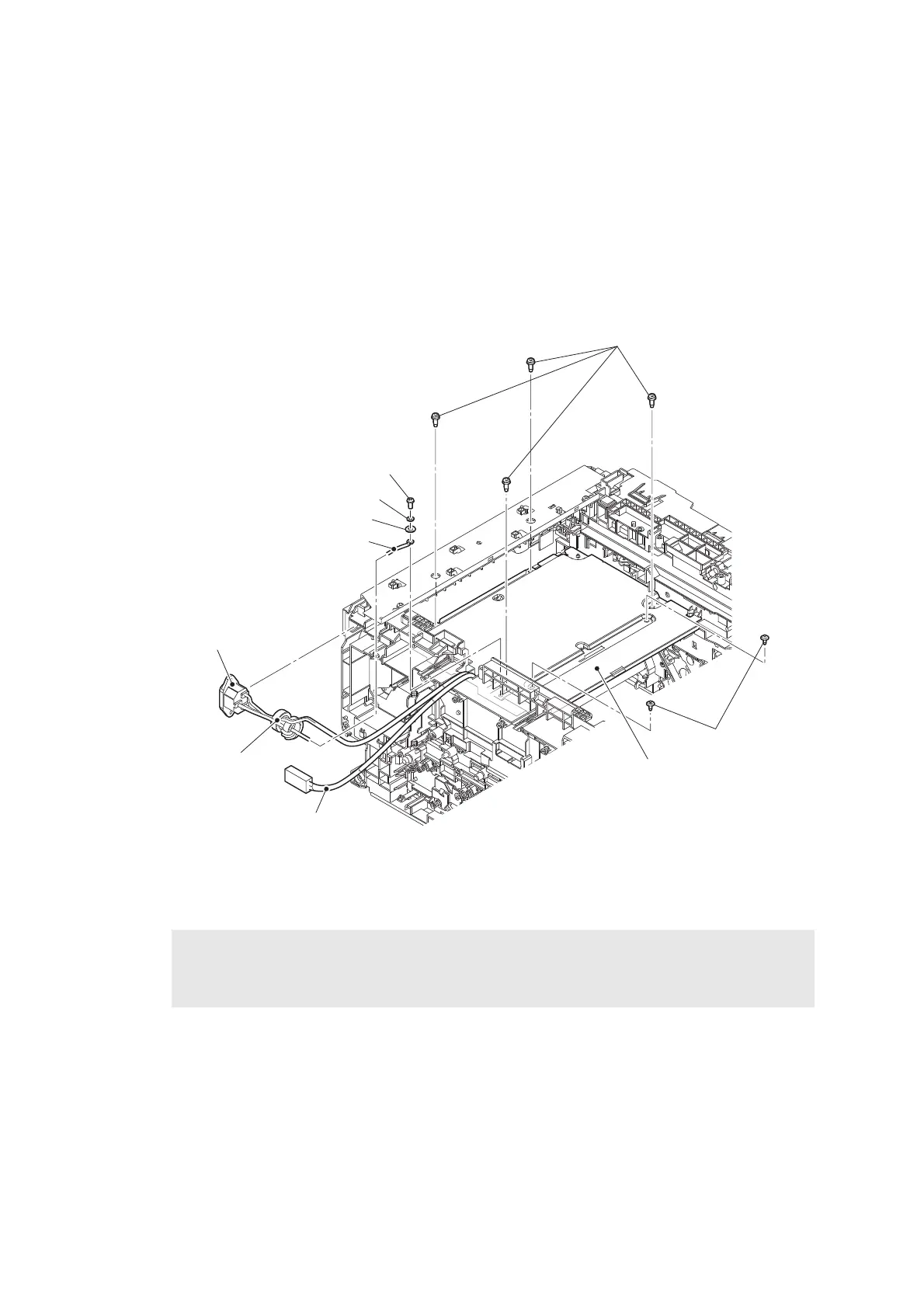

Fig. 3-71
Harness routing: Refer to “9. LVPS”.
Assembling Note:
• For safety purposes, follow the figure above to attach the Washer spring 2-4 and the
Washer 5 and secure them with the screw properly.
Taptite pan (washer) B M4x12DA
LVPS heater harness
Inlet
Inlet harness ASSY
Screw pan M4x8
Washer spring 2-4
Washer 5
LVPS ground wire
LVPS plate lower ASSY
Taptite cup S M3x8 SR
<Bottom side>
<Right side>
