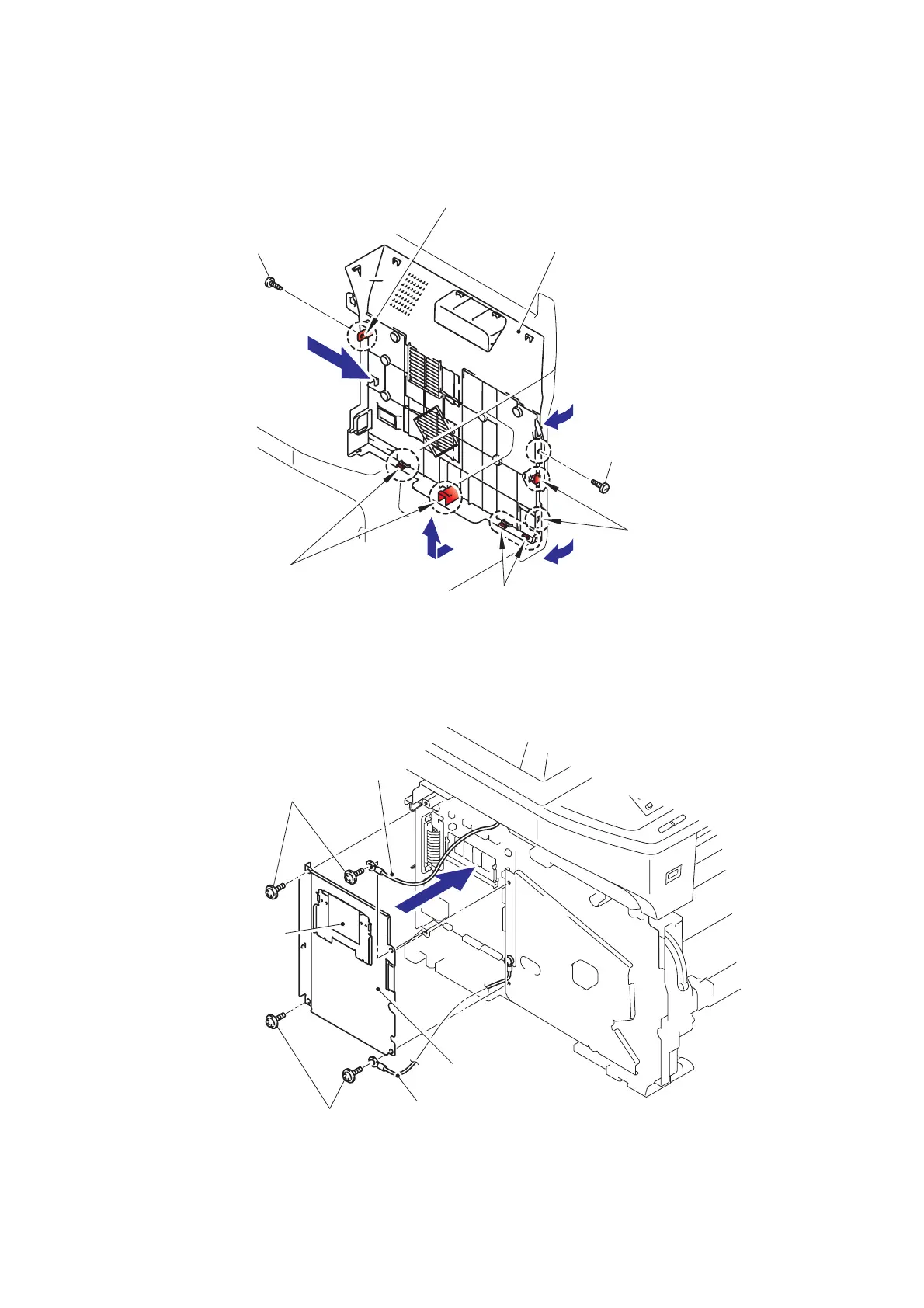

(20) Catch the Hooks in the order of the arrows and secure the Side cover R with the two
bind B M4x12 Taptite screws.
Fig. 4-34
(21) Secure the Shield cover ASSY and two FG harnesses with the four cup S M3x6 SR
Taptite screws.
Fig. 4-35
20a
20b
20c
20d
Taptite bind B M4x12
Hook
Hooks
Hooks
Side cover R
Hook
Taptite bind B M4x12
Taptite cup S M3x6 SR
Taptite cup S M3x6 SR
FG harness
FG harness
Seal
Shield cover ASSY
