TROUBLESHOOTING AND RO
UTINE MAINTENANCE
21 - 6

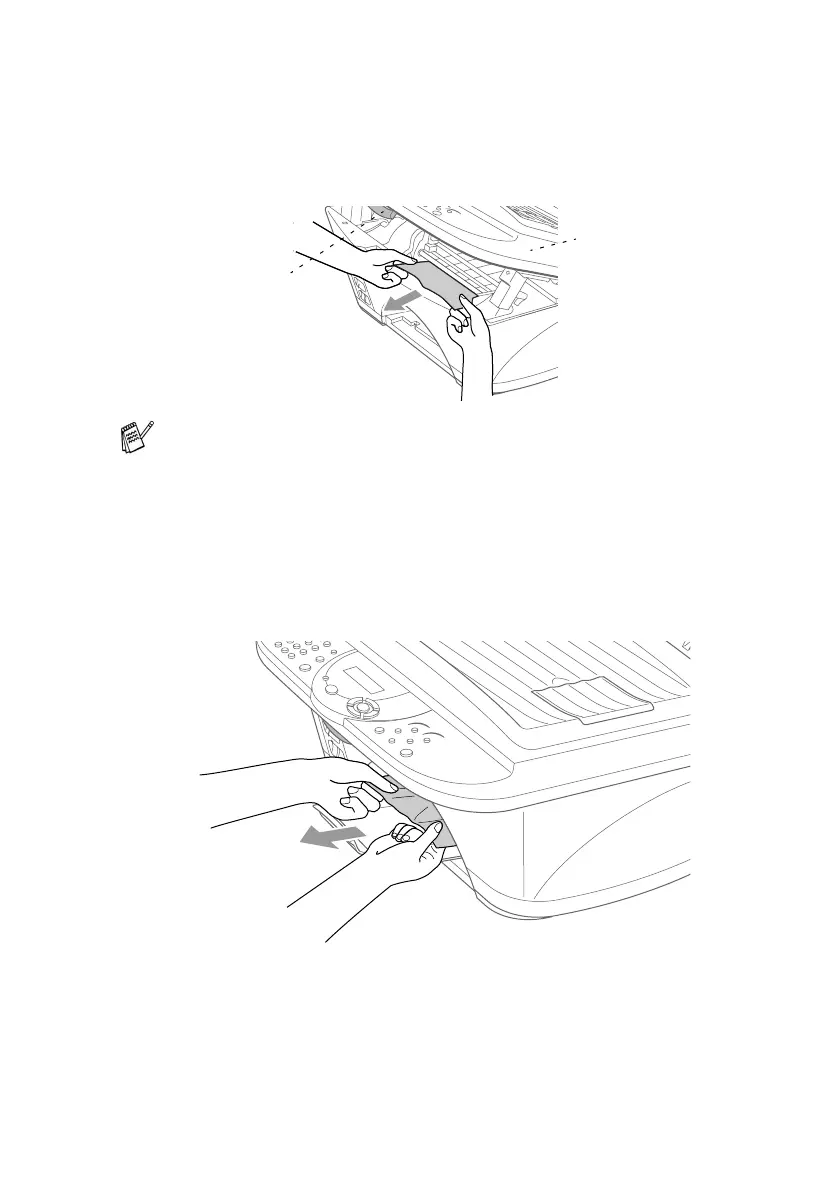

Paper is jammed inside the machine.
1
Open the scanner cover by releasing the scanner cover re
lease
lever and lifting the scanner cover.
2
Remove the jammed paper.
3
Close the scanner cover.
Paper is jammed inside the front of the machine.
Pull the jammed paper toward you.
If the jammed paper is under the print he
ads, unplug the
machine, and then you can move the print heads to take out the
paper.
Scanner Cover
Release Lever
