7 - 9
Special Instructions of Wiring
Special Instructions
of Wiring
Special Instructions
of Wiring

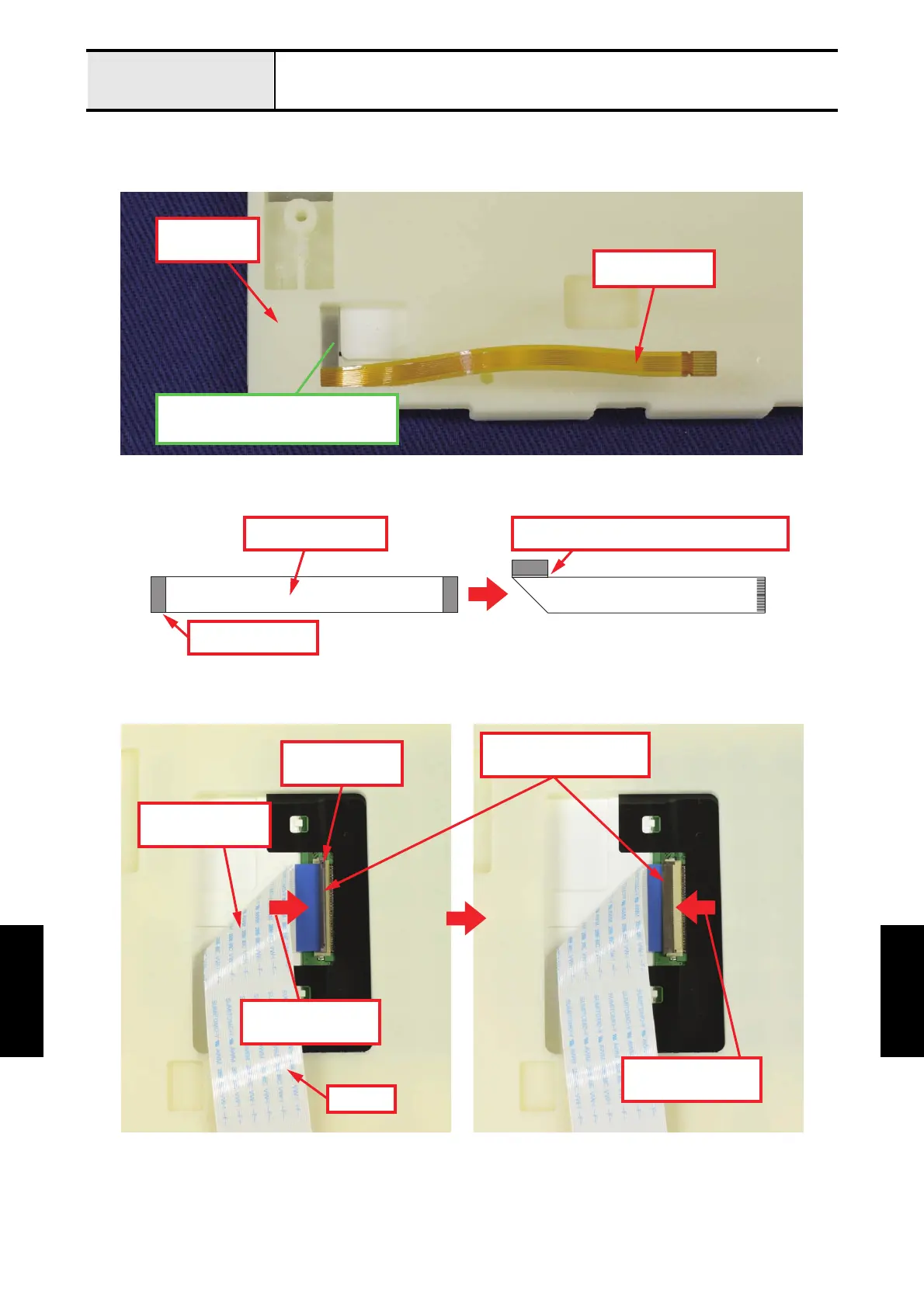

Panel unit
1. Wiring of FFC
Back side of LCD module
FFC
Unlock the
connector lock.
Be careful not to
damage the actuator.
Reinforcing tape
(Blue)
Connect the FFC
to the connector.
Lock the
connector lock.
FFC: SML2CD-50 Bend the FFC at the reinforcing tape.
Reinforcing tape
Back side of LCD spacer
Back light FPC
LCD spacer
Pass the back light FPC through
the hole of the LCD spacer.
