Brother PR655 - Page 322

7 - 10
Special Instructions of Wiring
Special Instructions
of Wiring
Special Instructions
of Wiring
Panel unit

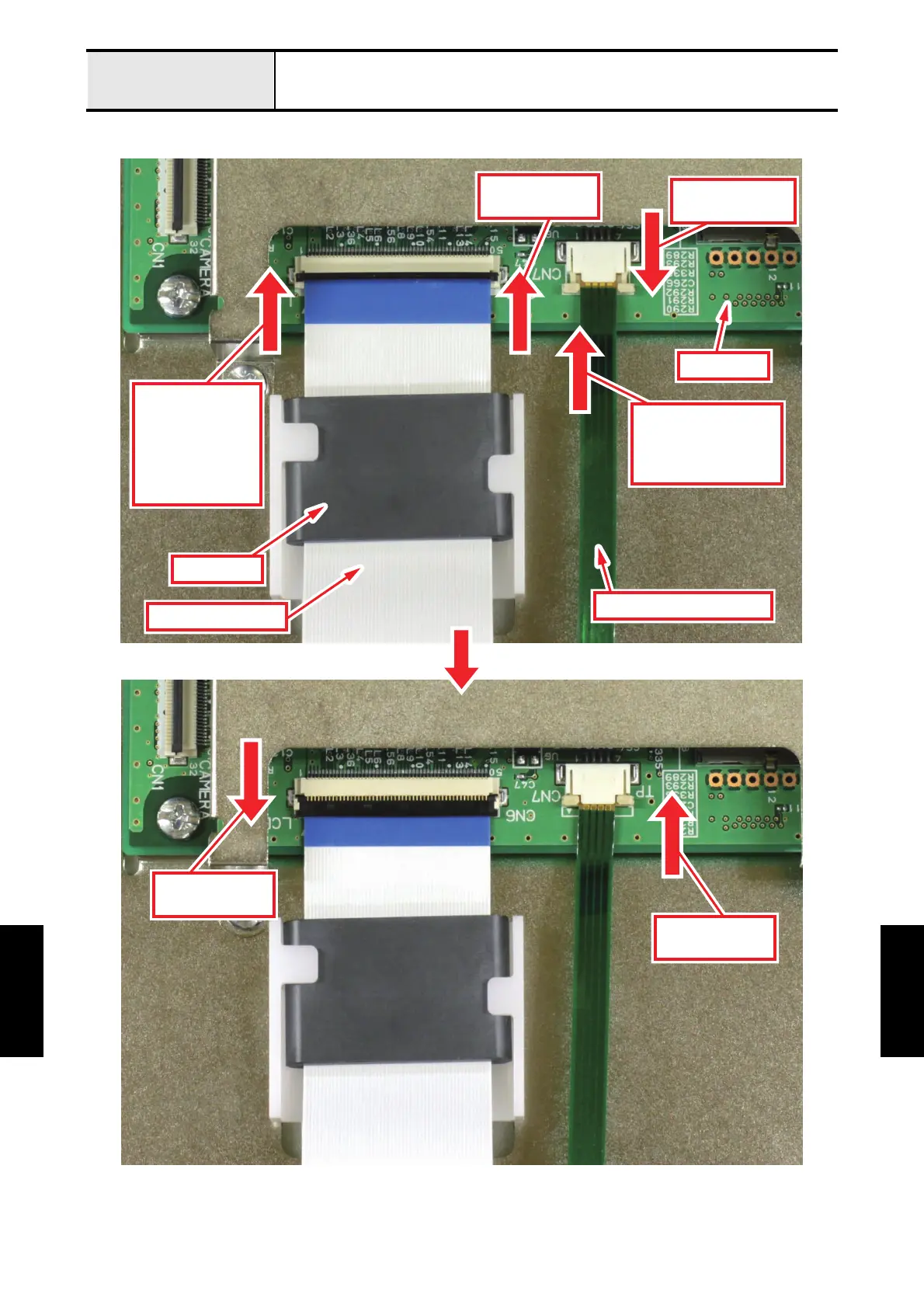

2. Wiring of LCD module and touch panel
Ferrite core
Connect the FFC
of the touch panel
to the connector
correctly.
Unlock the
connector lock.
Pass the FFC
through the
ferrite core, and
then connect
the FFC to the
connector.
Unlock the
connector lock.
Lock the
connector lock.
Lock the
connector lock.
FFC: SML2CD-50
Panel PCB
FFC of the touch panel
