Special Instructions of Wiring
Special Instructions
of Wiring
Special Instructions
of Wiring
Right side of arm bed

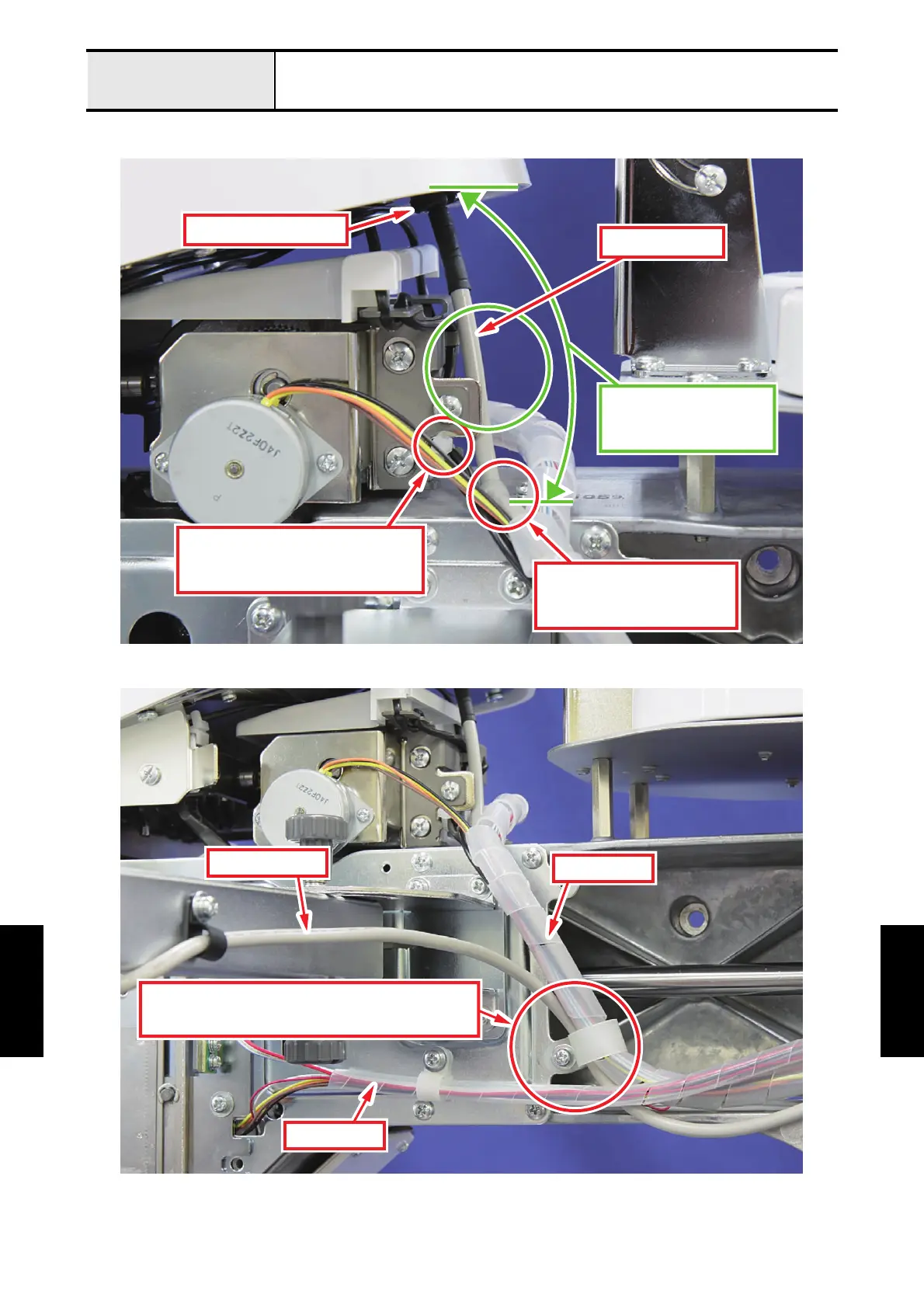

1. Wiring on right side of arm bed (1)
2. Wiring on right side of arm bed (2)
Secure the left/right LED lead
wire to the hook of the LED cord
holder with the band.
Cord bushing (back)
Secure the head lead wire
to the arm with the cord
clamp.
Distance from cord
bushing to cord clamp:
125 mm
Head lead wire
Panel lead wire
Spiral tube A
A
Spiral tube B
Secure the lead wires and spiral tube A to the
thread guide base with the cord clamp.
To Next Page
