7 - 26
Special Instructions of Wiring
Special Instructions
of Wiring
Special Instructions
of Wiring
Right side of arm bed

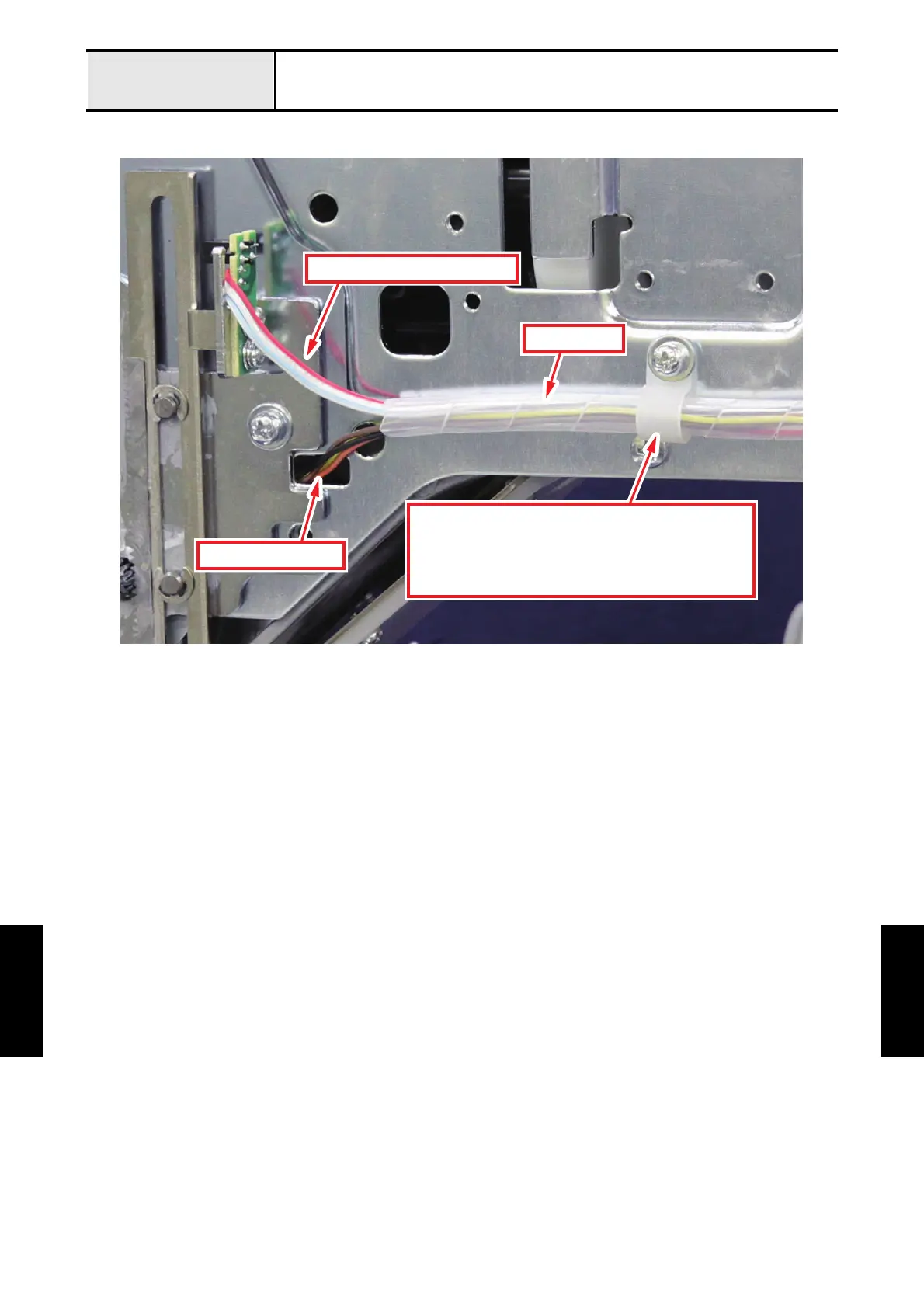

3. Wiring on right side of arm bed (3)
Needle TH sensor lead wire
TH motor lead wire
Secure the needle TH sensor lead wire and TH
motor lead wire with the spiral tube B, and
secure them to the thread guide base with the
cord clamp.
Spiral tube B
