7 - 27

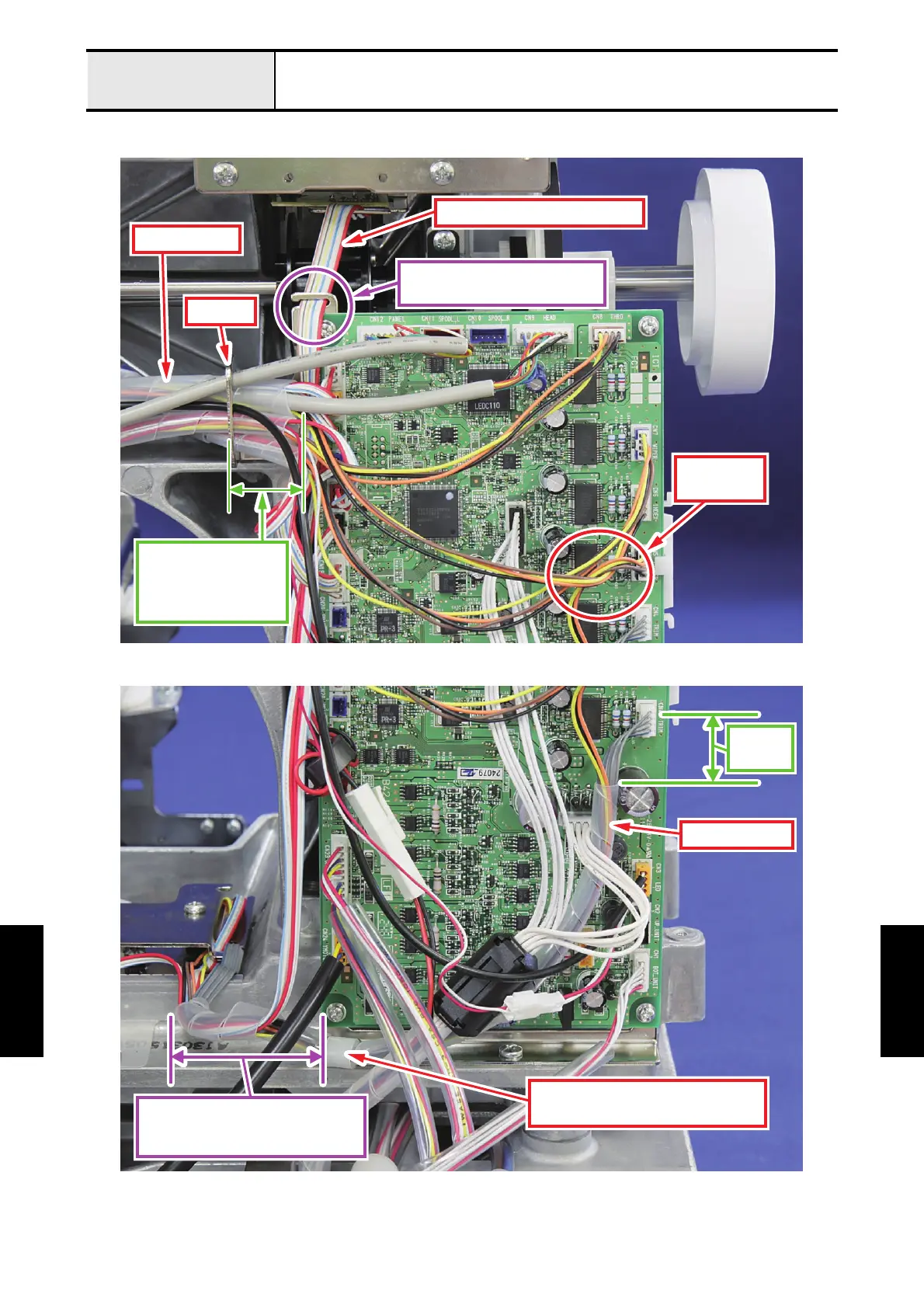

Special Instructions of Wiring
Special Instructions
of Wiring
Special Instructions
of Wiring
Main PCB
1. Wiring on upper side of main PCB
2. Wiring on lower side of main PCB
Main shaft sensor lead wire
Spiral tube A
Hook B
Hang the main shaft sensor
lead wire on the hook B.
Distance from the
hook B to the
spiral tube A:
more than 15 mm.
Cross the
lead wires.
Up to
30 mm
Spiral tube D
Distance from the end of the
spiral tube D to the cord clamp:
20 to 40 mm.
Secure the spiral tube D to the
base frame with the cord clamp.
