Brother PR655 - Page 41

2 - 20
Feed unit
Main unit
Disassembly Disassembly

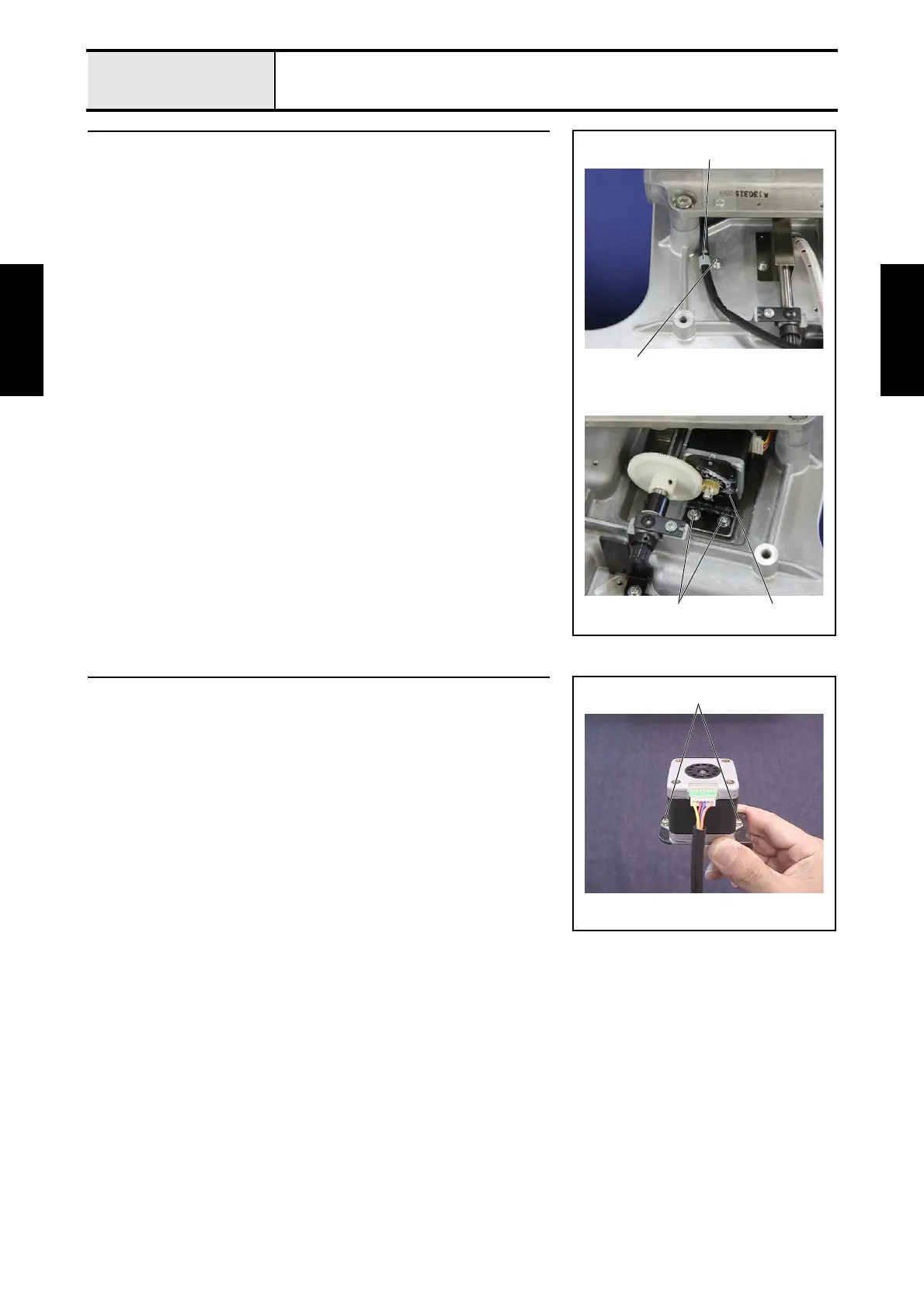

5 Y motor assembly removal
1. Remove the screw 1, and then remove the cord clamp 1.
2. Remove the 2 screws 2, and then remove the Y motor assembly 2.
1
1
2 2
6 Y-motor disassembly
1. Remove the 2 screws 1, and then remove the Y-motor assembly from the
Y-motor stay.
1
