MATRIX CUBE - 61 -
TLOW (%): minimum tension value, below which an
alarm will be generated (-1 to -100 % of the setpoint
value) (OFF = control disabled).
THIGH (%): maximum tension value, below which an
alarm will be generated (1 to 100 % of the setpoint
value) (OFF = control disabled).
TLOW TIME (s): running time with tension ≤ TLOW
after which an alarm will be generated (1 to 60 s).
THIGH TIME (s): running time with tension ≥ THIGH
after which an alarm will be generated (1 to 60 s).
MOTION CTRL: see the description provided above.

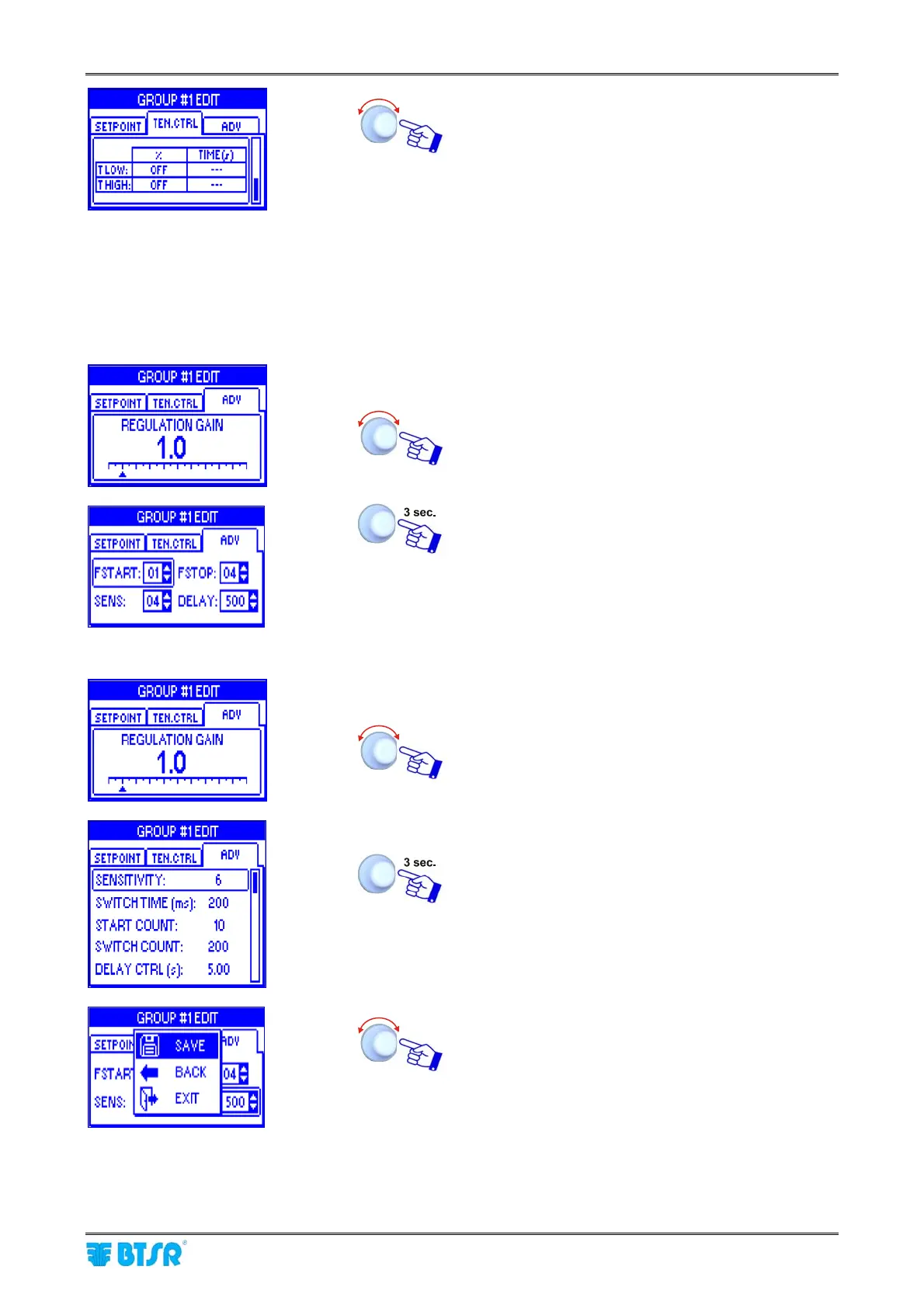

ADV window for MATRIX CUBE creel type
On the ADV window you may setup the regulation
algorithm (system gain) (REGULATION GAIN 0.1 to
10.0 – default 1.0) and the IS3F/HTP sensor
parameters (FSTART, FSTOP, SENS and DELAY)
Once you have setup all parameters within the
SETPOINT, TEN.CTRL, ADV windows.
ADV window for MATRIX CUBE 2 creel type
On the ADV window you may setup the regulation
algorithm (system gain) (REGULATION GAIN 0.1 to
10.0 – default 1.0) and the IS3F/HTP sensor
parameters (SENSITIVITY, SWITCH TIME (ms),
START COUNT, SWITCH COUNT and DELAY
CTRL (s))
Once you have setup all parameters within the
SETPOINT, TEN.CTRL, ADV windows.
SAVE to save the set parameters and return to section
setting screen.
