2002 Buell X1: Chassis 2-79
HOME

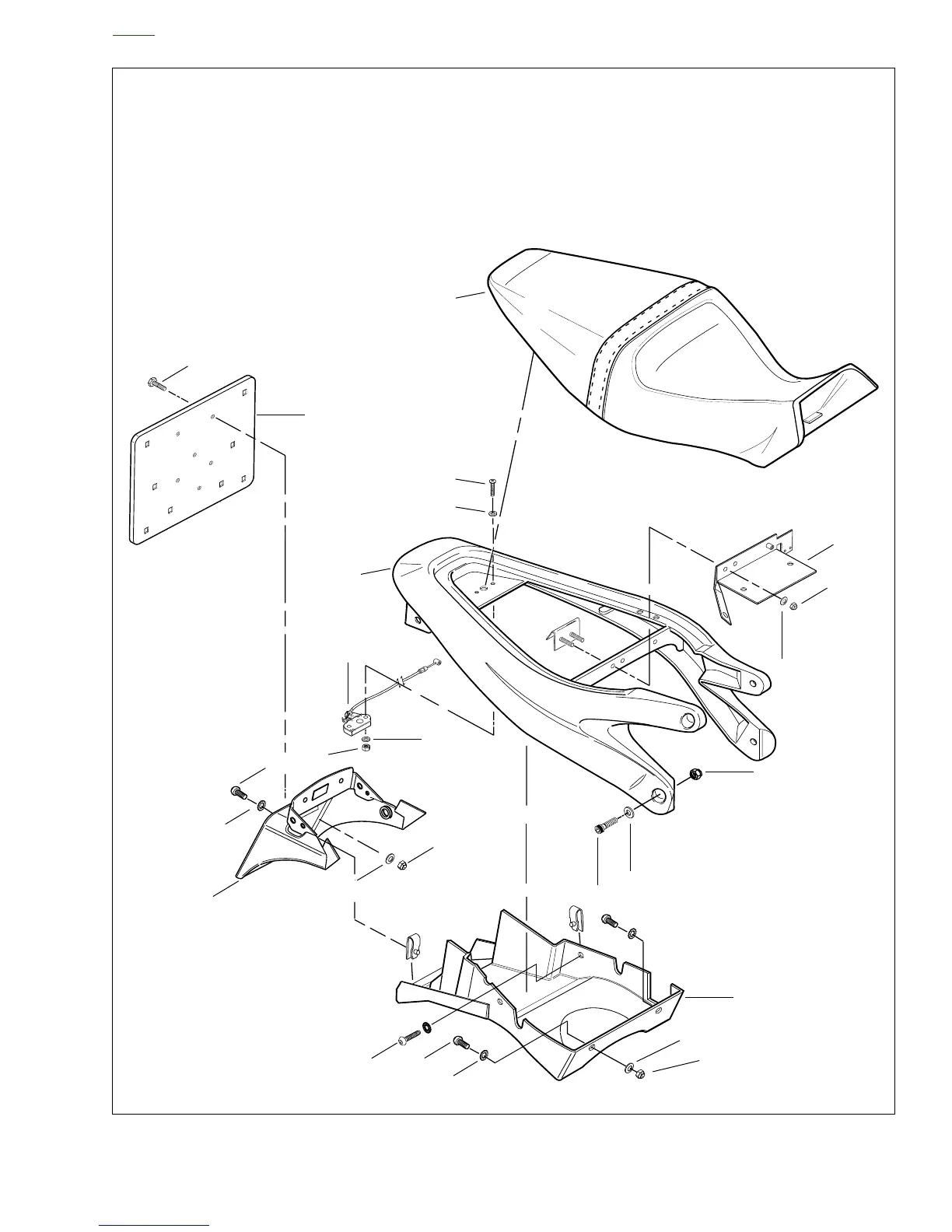

Figure 2-132. Tail Section
1. Trunk
2. Nut (3)
3. Washer (5)
4. Washer (6)
5. Screw (2)
6. Screw (4)
7. Nut (4)
8. Washer (6)
9. Bracket, License Plate
10. Nut (2)
11. Lock Assembly
12. Holder, License Plate
13. Screw (4)
14. Tail Section
15. Screw (2)
16. Seat
17. Bracket, Electronic Control
18. Nut (4)
19. Washer (4)
20. Screw (4)
