2002 Buell X1: Fuel System 4-29
HOME

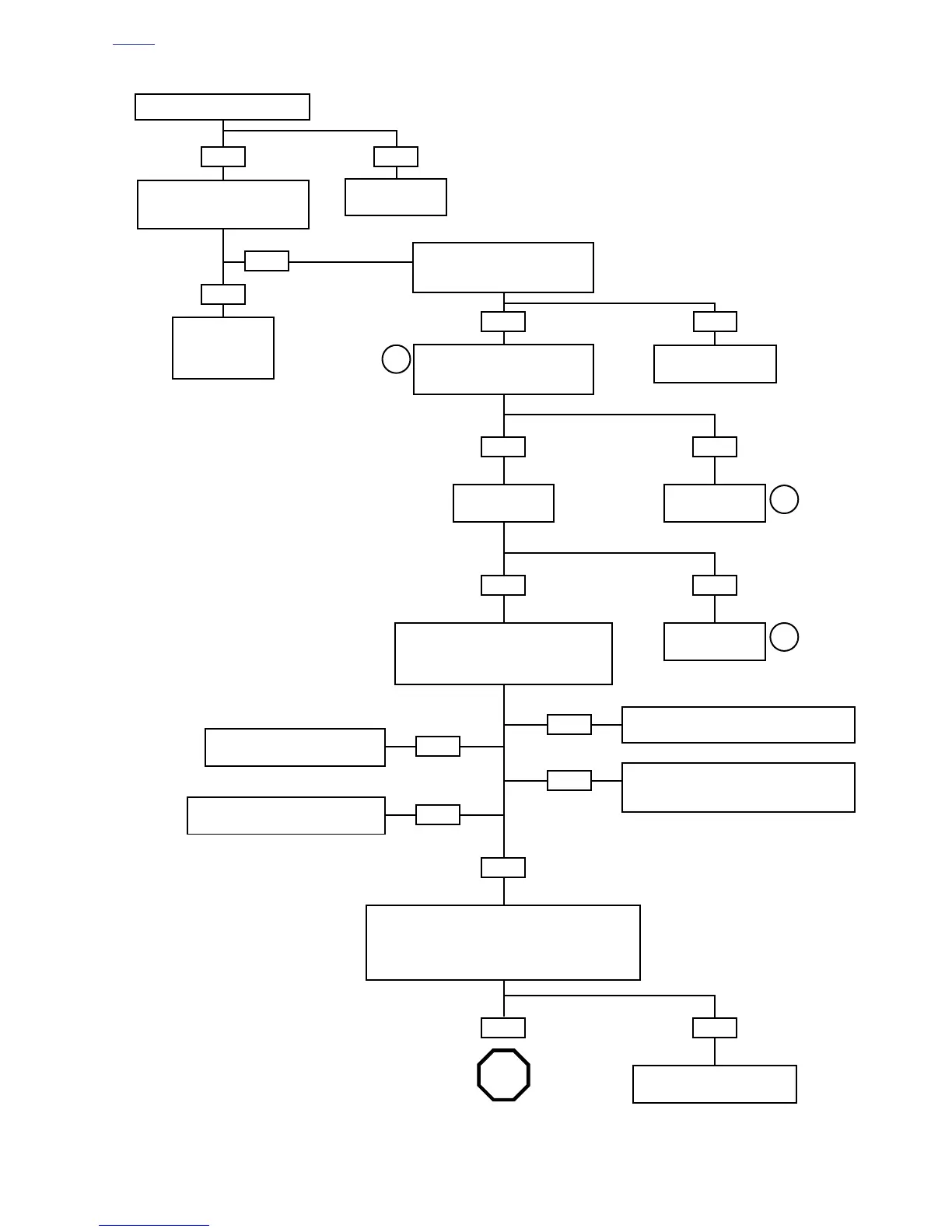

Test 4.12 (Part 1 of 3)
Is fresh gasoline in tank?
YES NO
Fill tank with
fresh gasoline.
Check for trouble codes. See 4.4
CHECKING FOR TROUBLE
CODES
. Codes found?
Refer to applicable
trouble code chart.
Start with lowest
code
YES
Check battery connections.
Check battery voltage. Is voltage
above 12.8 volts?
NO
Recharge
battery.
YES
Does battery pass
load test?
NO
Replace
battery.
YES
Place transmission in neutral. Turn ignition
key switch ON and set engine stop switch to
RUN. Did fuel pump run 2-3 seconds and
check engine lamp illuminate?
NO
No pump response, but light OK.
See
4.14 FUEL PRESSURE TEST.
NO
Pump OK, but no light.
See
4.10 CHECK ENGINE LAMP NOT ILLUMI-
NATED AT KEY ON
.
YES
Install Fuel Pressure Gauge. See 4.14 FUEL PRES-
SURE TEST
. While cranking engine (for more than
two seconds to ensure proper system operation),
verify that pressure rises to 46-53 PSI (317-365 kPa).
Adequate pressure?
NO
Incorrect pressure. See 4.14
FUEL PRESSURE TEST
.
1
1
1
Go to Test 4.12
(Part 2 of 3).
YES
STOP
NO
No pump response or light.
See to
4.13 NO ECM POWER.
NO
Short pump response, light OK.
See
4.34 BANK ANGLE SENSOR.
7180
7185
7190
7195
NO
Place Scanalyzer in Data
Monitor mode. Review data.
Does BAS MODE=RUN MODE?
YES
See 4.26 TROUBLE
CODE 44
.
NO
