2002 Buell X1: Fuel System 4-71
HOME

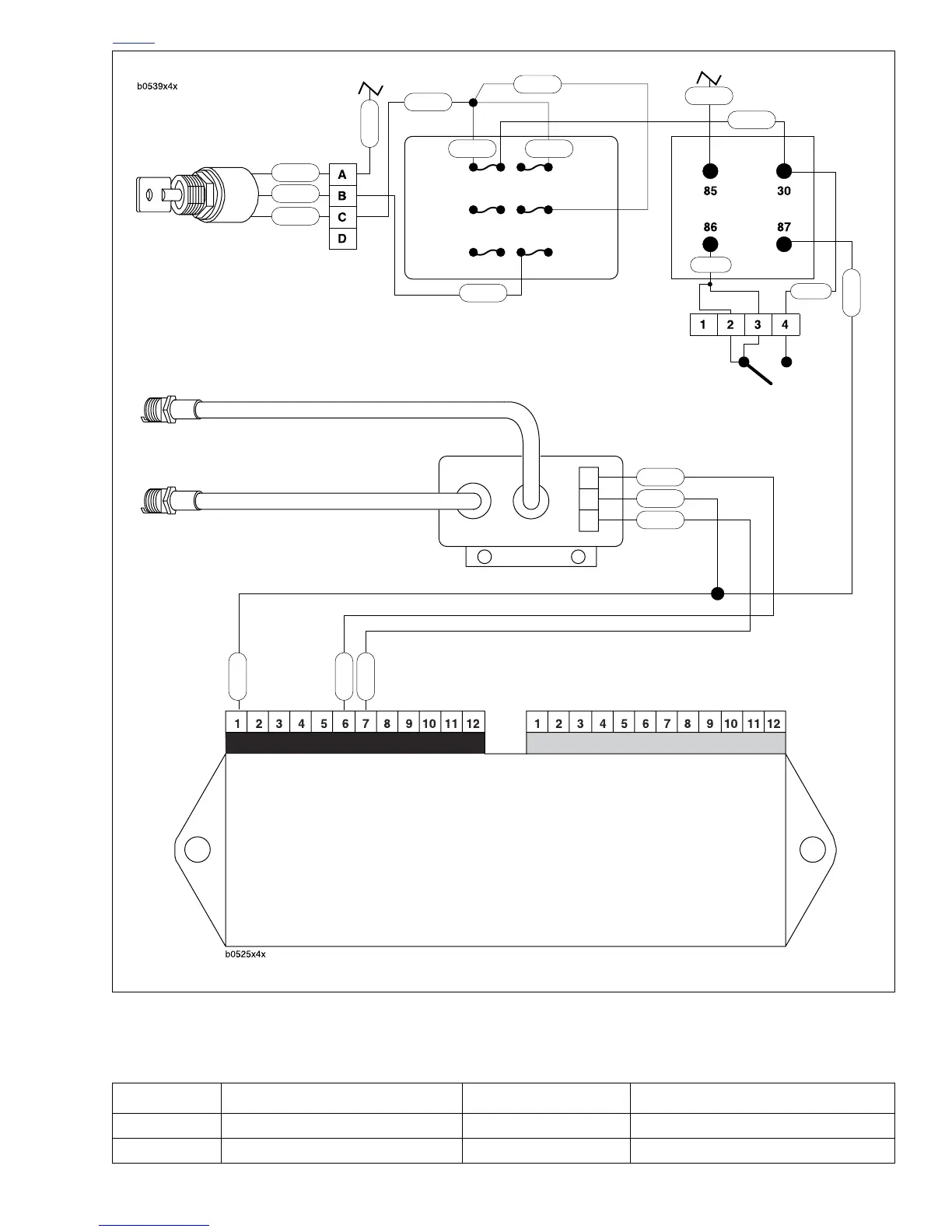

Figure 4-56. Ignition Coil Circuit
b0544x4x
ABC
FR
Ignition Coil [83]
Electronic Control Module
(ECM)
Connector [10] Connector [11]
GY
GY
BE/O
BE/O
R
R
R/GY
R/BK
R/GY
R/BK
R/BK
R/BK R/BK
GY/O
Ignition 20A
Memory 15A
Spare 15A
Lights 15A
Instruments 15A
Accessory 15A
Ignition
Switch
[33]
Engine Stop
Switch [22]
TN/W
Ignition Relay
W/BK
GY/O
To Main Circuit
Breaker
To Starter
Interlock Circuit
GY
Front Spark Plug
Rear Spark Plug
Y/BE
Y/BE
Table 4-22. Wire Harness Connectors in Figure 4-56.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch under seat
[83] Ignition coil connector 3-place Packard under fuel cell, left side
