2002 Buell X1: Fuel System 4-91
HOME

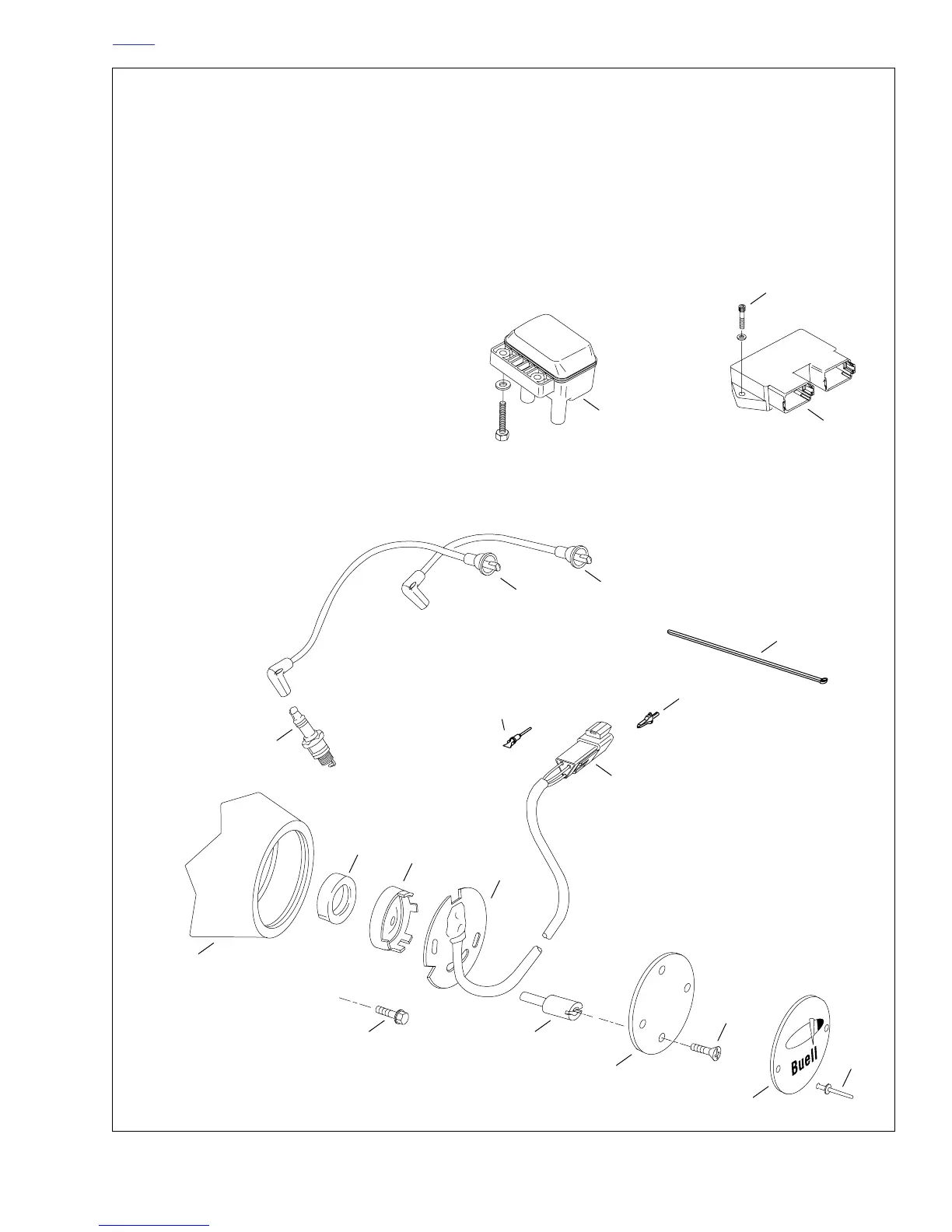

Figure 4-72. Ignition Components
DDFI
1
2
4
56
10
11
14
13
12
17
16
19
15
18
3
7
8
9
b0764x7x
1. Pop Rivet (2)
2. Timer Cover
3. Screw (2)
4. Inner Cover
5. Timer Plate Stud (2)
6. Bolt
7. Cam Position Sensor
8. Trigger Rotor
9. Seal
10. Gearcase Cover
11. Spark Plug (2)
12. Ignition Coil
13. Front Spark Plug Cable
14. Rear Spark Plug Cable
15. Cable Strap
16. Terminal Pin
17. Cam Position Sensor Connector [14]
18. Secondary Lock
19. Electronic Control Module (ECM)
20. Screw (2)
