15
Description

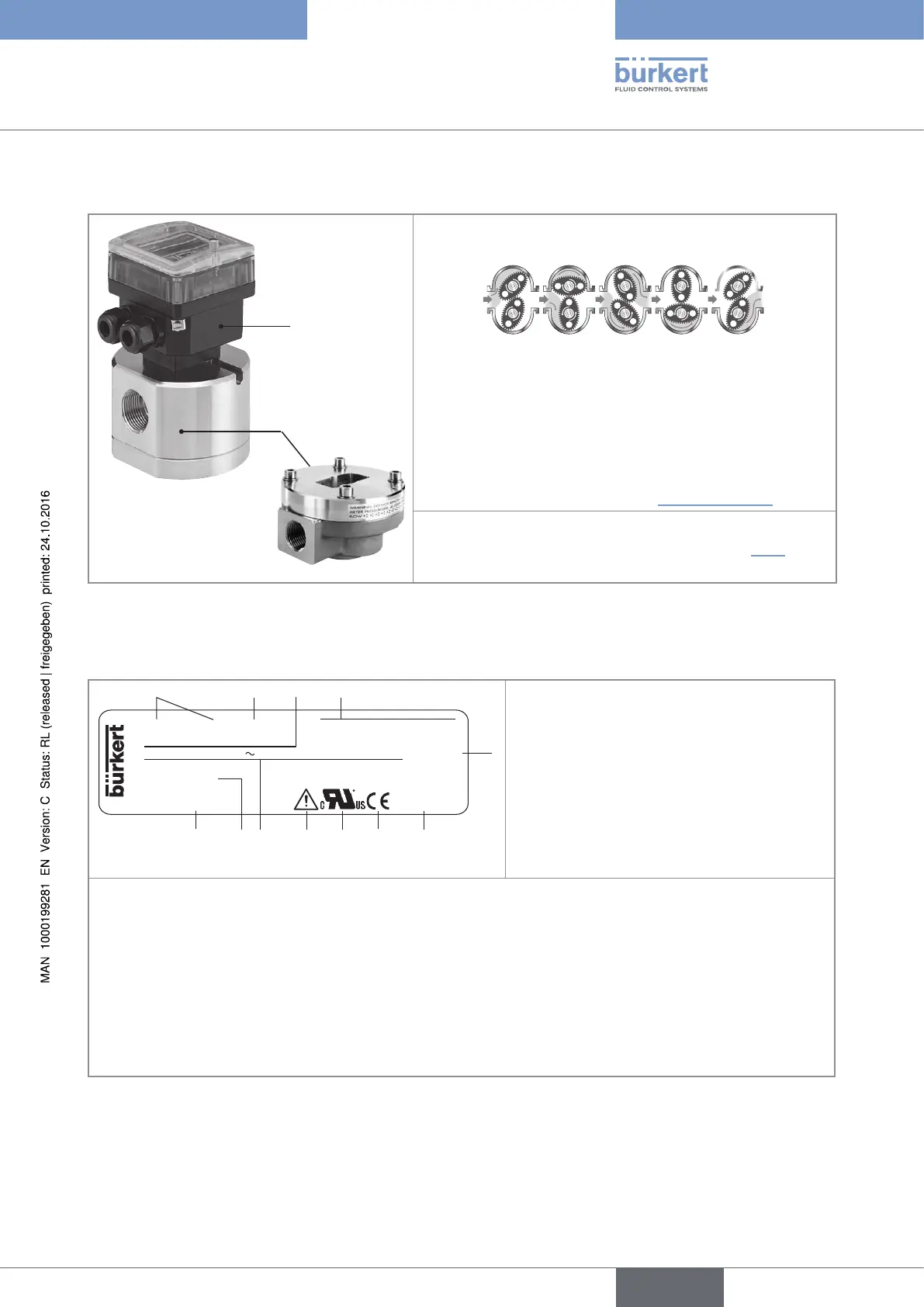

5.2.6 Construction of the SE35 Batch with sensor-fitting S070 or S077
B
A
S070
S077
A: S070 or S077 sensor-fitting including the flow sensor with
oval gears.
Set in rotation by the flow, the magnets integrated in the oval
gears generate pulses, the frequency of which is proportional
to the volume of fluid. A conversion coefficient specific to
each pipe (material and diameter) is necessary to establish
the flow rate value associated with the measurement.
The conversion coefficient (K-factor) expressed in pulses per
litre is given in the Operating Instructions for the S070 or S077
sensor-fitting used, available under: www.burkert.com
B : Dosing controller type SE35 Batch (see chap. 5.2.4).
Fig. 6 : Construction of the SE35 Batch with sensor-fitting S070 or S077
5.3 Description of the name plate
BATCH SE35/8035 HALL SUPPLY: 12-36V... 100 mA
DO1&4: 5-36V... 100mA
DO2&3:2xRelay 30V and 42V peak or 60V... max. IP65
S/N 20 000
00564398 W4YMA
Made in France
1. Type of the device
2. Sensor specifications
3. Specifications of the transistor outputs
DO1 and DO4
4. Power supply and max. current consumption
5. Protection class of the device
6. Manufacturing code
7. Conformity marking
8. Certification
9. Warning: Before using the device, take into account the technical specifications described in these oper-
ating instructions
10. Specifications of the relay outputs DO2 and DO3
11. Serial number
12. Order code
Fig. 7 : Name plate of the device (example)
English
Type 8025 - 8035 - SE35 BATCH
