Burkert 8035 - Install the 8025 Batch in Compact Version into the S020 Fitting; Finalise the Installation of the 8025 Batch in Compact Version

35
Fluid installation
Filling of the pipe
in horizontal mounting
Filling of the pipe and fluid flow circulation
in vertical mounting
Correct Incorrect
Correct Incorrect
shows the fluid flow direction
Air bubbles within the pipe
Correct Incorrect
Correct Incorrect

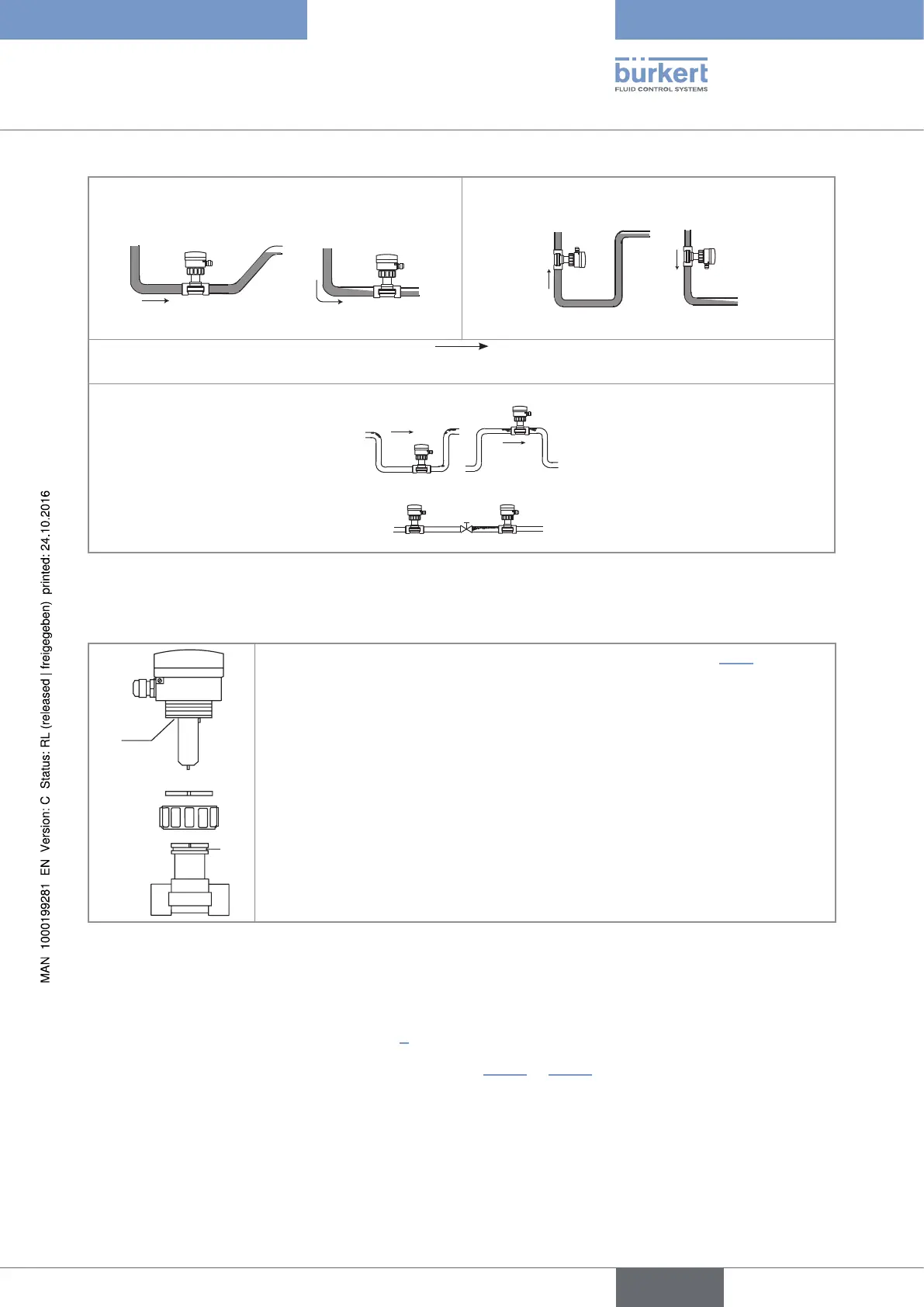

Fig. 11 : Filling of the pipe, flow direction of the fluid, Vertical mounting Air bubbles within the pipe
7.2.2 Install the 8025 Batch in compact version into the S020 fitting
1
2
3
5
4
6
→ Install the fitting 5 onto the pipe following the instructions in chap. 7.2.1.
→ Check that there is a seal on the fitting and that it is not damaged. Replace the seal
if necessary.
→ Insert the nut 3 on the fitting 5.
→ Insert the snap ring 2 into the groove 4.
→ Check that the seal 6 is correctly inserted on the flow sensor.
→ Insert the device 1 into the fitting.
If the mounting is correctly done the device cannot be turned around anymore.
→ Hand lock the assembly with nut 3.
Fig. 12 : Installation of a 8025 Batch in compact version into an S020 fitting
7.2.3 Finalise the installation of the 8025 Batch in compact
version.
→ Wire the device and switch it on (see chap. 8).
→ Set the K-factor or determine it with Teach-In (see chap. 10.7.3 or 10.7.4).
English
Type 8025 - 8035 - SE35 BATCH
