114
Operating and functions
State of the device State of the the transistor output DO4
Problem which occurs during or at the end of a dosing:
• no flow in the pipe whereas the valves are open.
• a flow is measured in the pipe whereas the valves
are closed.
• when the dosing mode "EXT [T]" is active on the
device, the activation duration of the digital input
DI1 does not respect the conditions described in
chap. 10.7.11.
3,5 Hz-frequency
An error message has been generated by the device.
See chap. 11.3
10 Hz-frequency, if the function is active on the
device: see Fig. 87
The power supply has been cut during a dosing 10 Hz-frequency for 2 seconds when the device is
started, if the function is active on the device: see
Fig. 87
Selected quantity Vn, when the dosing mode "EXT.
+LOC" is active (see Fig. 47, chap. 10.6.4)
n pulses generated at a 50 Hz-frequency
OUtPUt DO4
→ Confirm for the output DO4 to transmit the device state.
10HZ OFF
StAtE
REtURN
→ Activate / deactivate the generation
of a 10 Hz frequency on the transistor
output DO4, when the device gen-
erates a fault.
→ Confirm.
10HZ ON
0......9

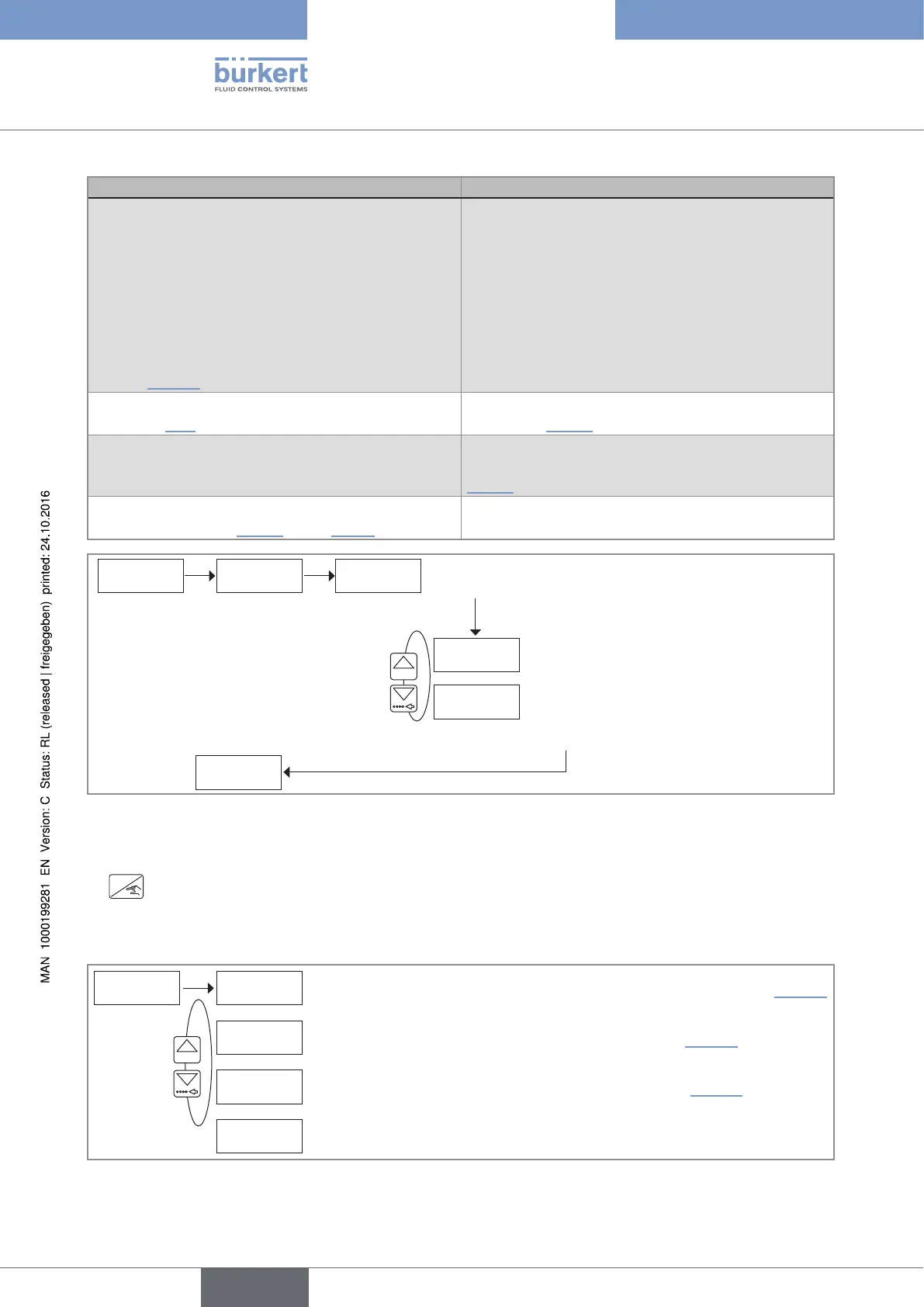

Fig. 87 : Configuring the transistor output DO4 to transmit the device state
→ If you do not want to adjust another parameter, go to the "END" parameter of the Parameters menu and press
ENTER
to save the settings or not and go back to the Process level.
10.7.27 General diagram of the "RESET" sub-menu
RESEt tOtAL
BAtCH
HiStORiC
0......9
Choosing to reset or not the two volume or mass totalizers. See chap. 10.7.28.
Resetting both totalizers of the done dosings. See chap. 10.7.29.
Clearing the history table of the done dosings. See chap. 10.7.30.
REtURN
Fig. 88 : General diagram of the "RESET" sub-menu
English
Type 8025 - 8035 - SE35 BATCH
