Fluid installation
7.4.2 Install the dosing controller SE35 Batch on the sensor-
fitting S070 or S077
1
2
S070
S077
3
→ Insert the dosing controller 1 in the sensor-fitting 2.
→ Turn the dosing controller 1 by a quarter turn.
→ Tighten the lateral screw(s) 3 to lock the dosing controller
1 in place on the sensor-fitting 2 (max. torque 1 Nm).

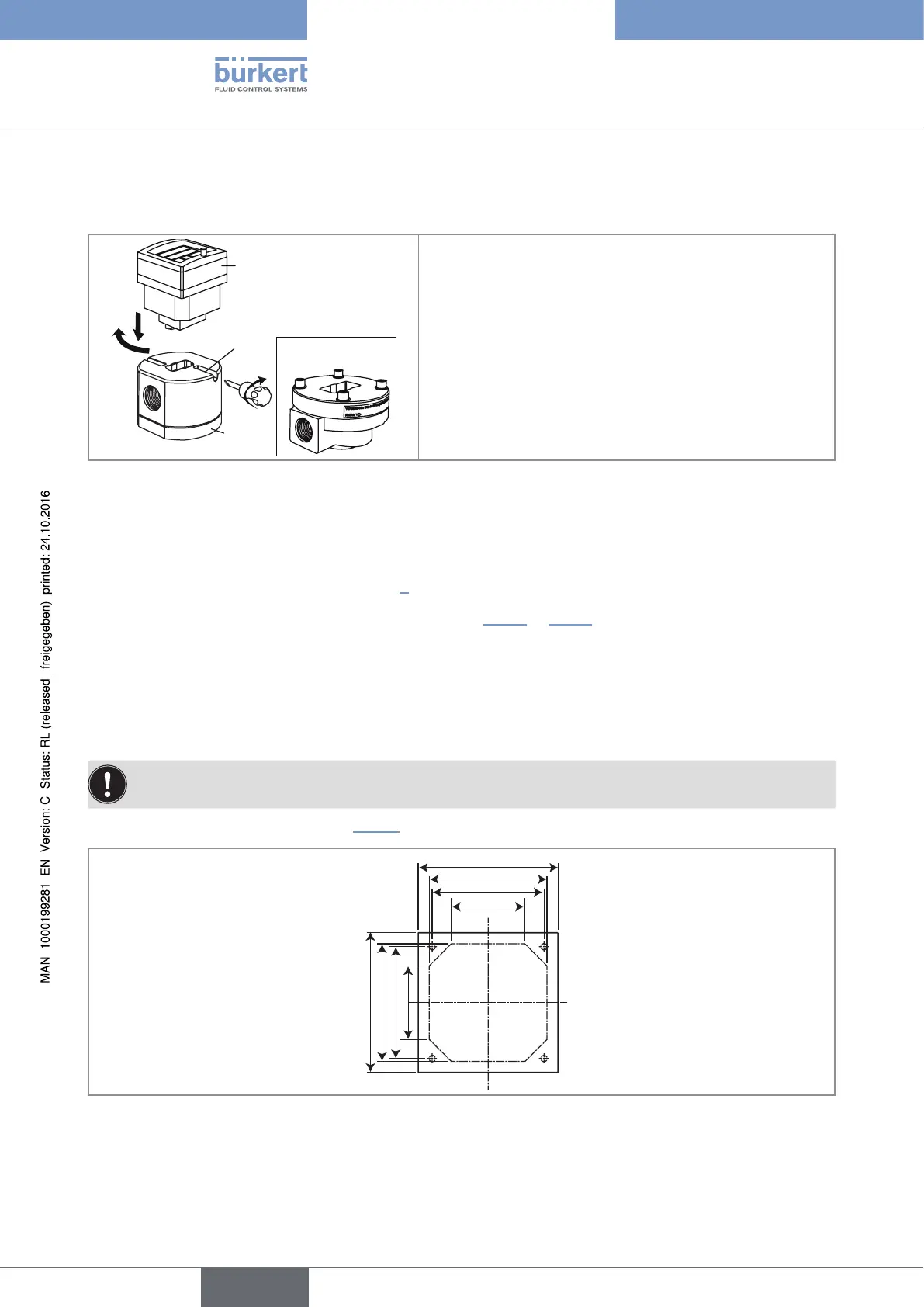

Fig. 15 : Installation of the dosing controller SE35 Batch on the sensor-fitting S070 or S077
7.4.3 Finalise the installation
→ Wire the device and switch it on (see chap. 8).
→ Set the K-factor or determine it with Teach-In (see chap. 10.7.3 or 10.7.4).
7.5 Installation of the dosing controller 8025 Batch in
panel version
Install the 8025 Batch in panel version in a cabinet with a protection class at least IP54 to ensure a
degree of pollution 2 inside the cabinet.
→ Respect the dimensions indicated in Fig. 16 to cut the opening in the cabinet door.
95
80
76
50
95
80
76 50
Fig. 16 : Dimensions [mm] of the electrical cabinet frontage cutting plan
