39
Fluid installation
Seal
Nut
Washer
Screws
Cable clip

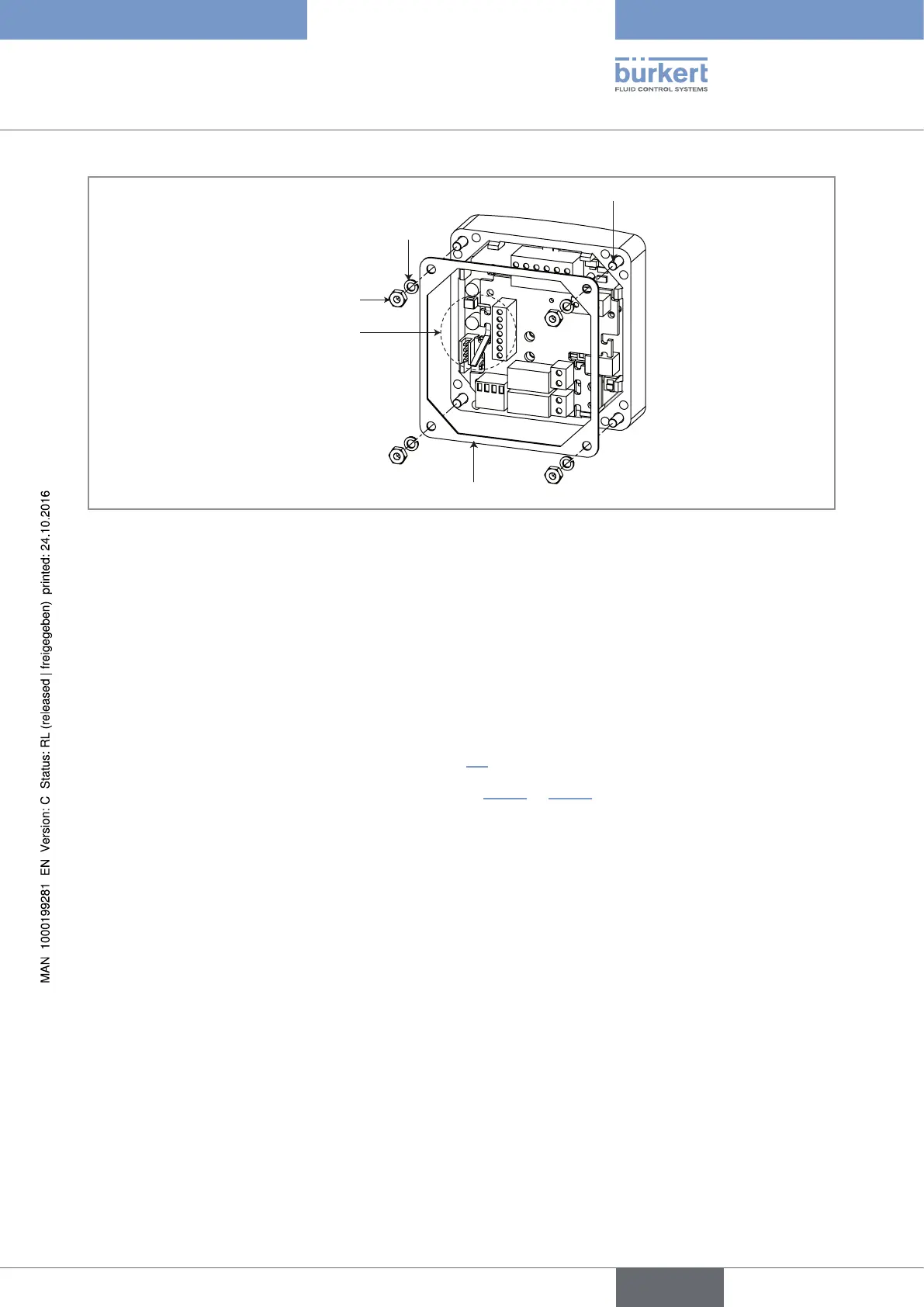

Fig. 17 : Installation of the 8025 Batch in panel version
→ Insert the 4 screws in the housing (from the front). If the cabinet door is too thick use the 4 supplied M4*25
screws.
→ Insert the seal on the external threads of the 4 screws (rear of the housing).
→ Put the assembly on the cutout, electronics turned to the inside of the cabinet.
→ Put the 4 washers on the 4 screws.
→ Put a nut on each of the 4 screws and tighten the nuts to secure the device to the cabinet.
→ Wire the device according to the instructions in chap. 8.7.
→ Set the K-factor or determine it with Teach-In (see chap. 10.7.3 or 10.7.4).
English
Type 8025 - 8035 - SE35 BATCH
