Burkert 8202 ELEMENT User Manual

11
Description

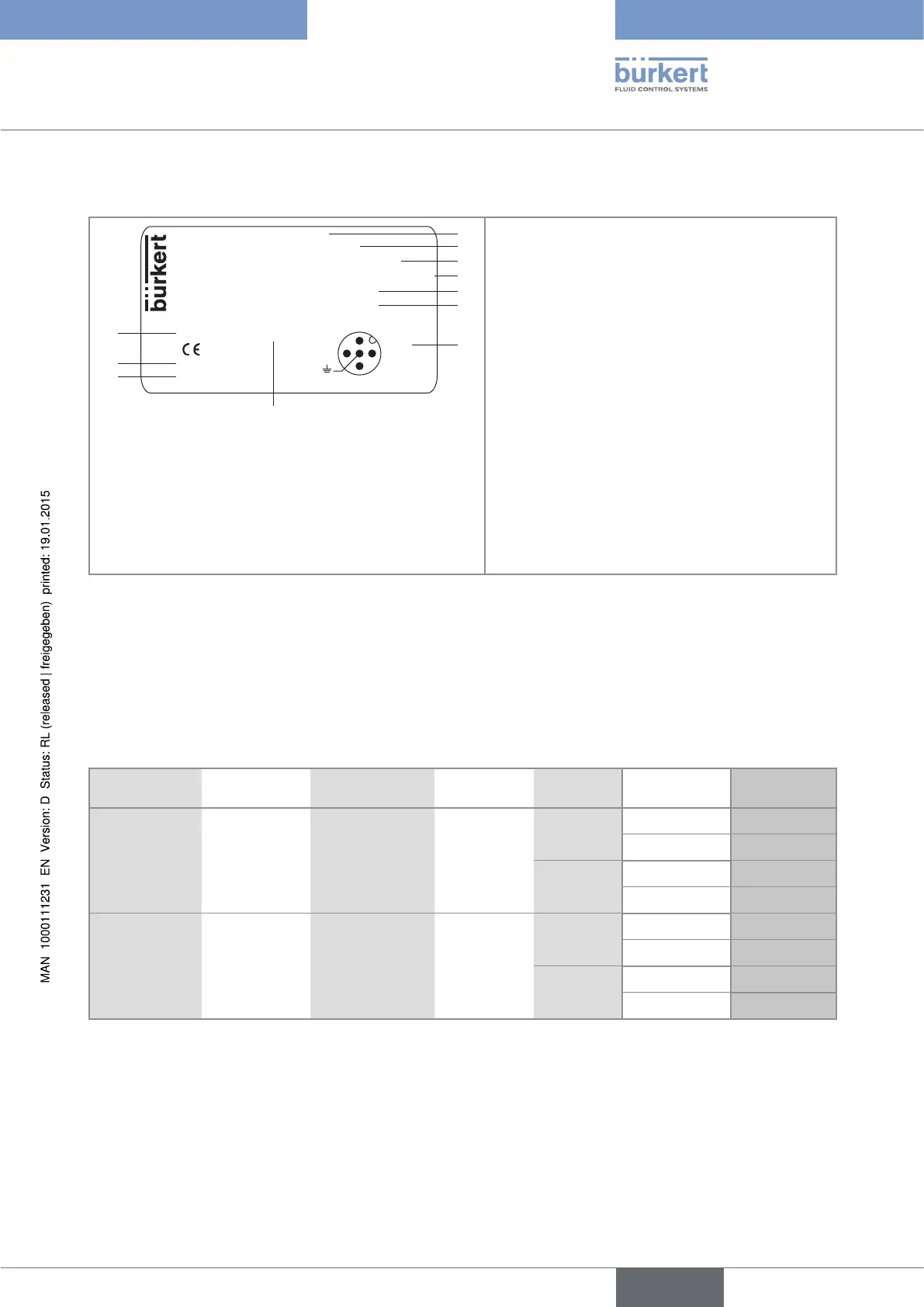

5.3. Description of the name plate
8202 pH/ORP Transmitter
Supply: 14-36VDC 40W Max
Output: 1x4-20mA 2xTrans 1A Max
Cell:pH -2/16 ORP +-2000mV 120mm PG13.5
Process: Temp 0/50°C limited by cell
PN 16 Bar limited by cell
IP65 -IP67 W43LP
S-N:1110
00559630
Made in France
1
2
3
4
5
6
7
8
9
10
11
1:V+
2:NPN/PNP1
3:0V
4:NPN/PNP2
1. Type of transmitter and parameter measured
2. Electrical power supply and power consumption
3. Output specifications
4. Sensor specifications
5. Temperature range of the fluid, without sensor
6. Nominal pressure of the fluid, without sensor
7. Allocation of the pins on the M12 fixed
connectors
8. Construction code
9. Order code
10. Serial number
11. Protection rating
Fig. 1 Name plate on the 8202 transmitter
5.4. Available versions
The following versions of the 8202 pH transmitter are available. These references include the electronic module
and the sensor holder including the Pt1000.
The pH/Redox sensor, the display module and the fitting for connection to the process should be ordered sepa-
rately. For the pH/Redox sensor and the display module, see the list of accessories in Chapter 11
Voltage supply Outputs
Electrical
connection
Sensor
Nut
material
UL Order code
14-36 V DC 2 transistors +
1 x 4-20 mA
Male 5-pin M12
fixed connector
without PVC no
559630
yes
559634
PVDF no
559632
yes
559636
12-36 V DC 2 transistors +
2 x 4-20 mA
Male 5-pin M12
fixed connector
+ female 5-pin
M12 fixed
connector
without PVC no
559631
yes
559635
PVDF no
559633
yes
559637
