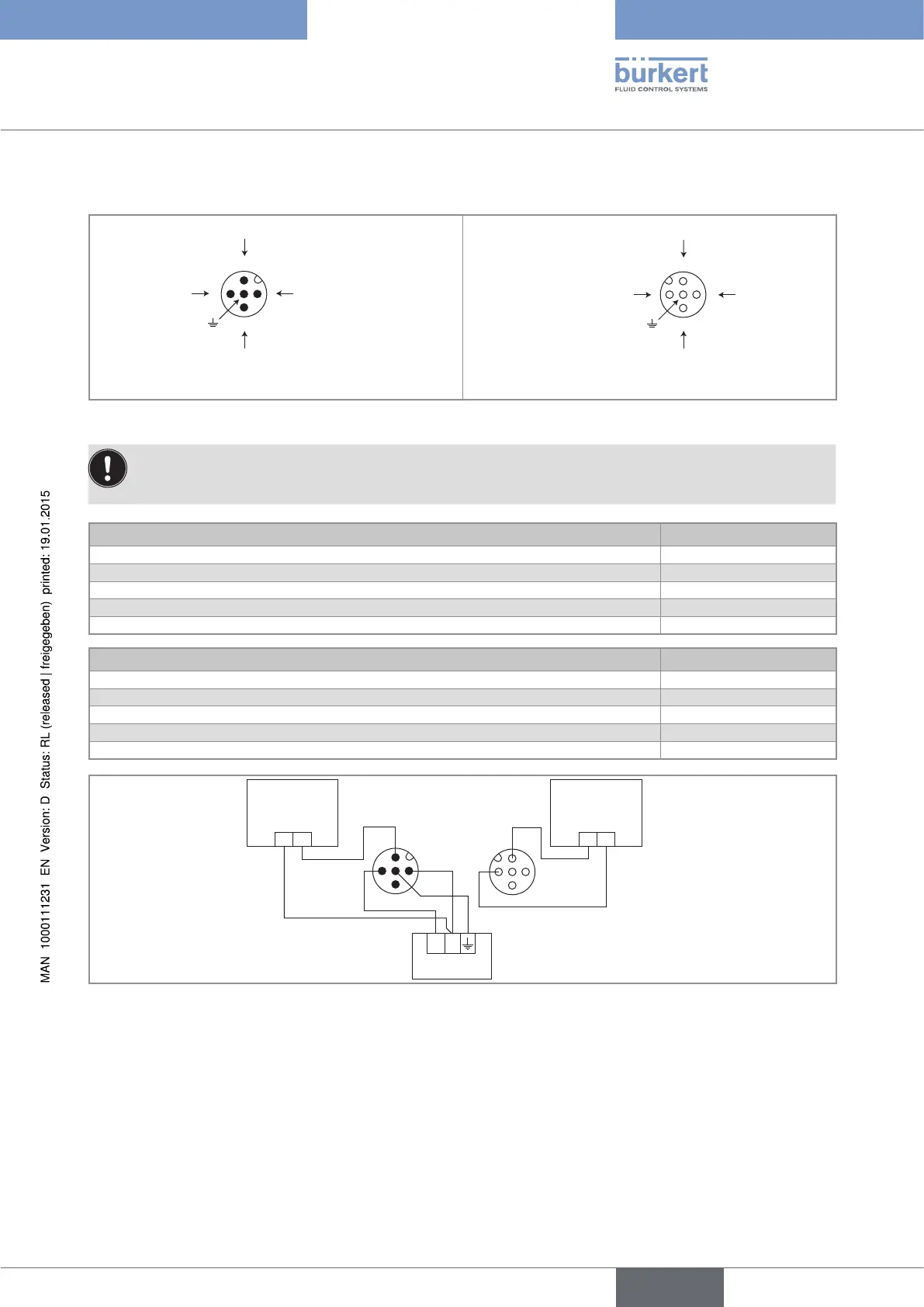

8.3.4. Wiring a version with 2 M12 fixed connectors
1
2
3
4
Transistor output 1
Current output 1
0V
V+
(12-36 V DC)
Male fixed connector
1
2
3
4
V+
(12-36 V DC)
Transistor output 2
Current output 2
0V
Female fixed connector
Fig. 26 Pin assignment of the male and female M12 fixed connectors
Connect the power supply for the transmitter to the male fixed connector; the supply is then
transferred internally to pins 1 and 3 of the female fixed connector in order to ease wiring of the
load to the female fixed connector.
Pin of the M12 female cable available as an accessory (order code 438680) Colour of the wire
1 brown
2 white
3 blue
4 black
5
grey
Pin of the M12 male cable available as an accessory (order code 559177) Colour of the wire
1 brown
2 white
3 blue
4 black
5
grey
12-36 V DC
+ -
1
2
3
4
3
2
1
4
Load 1 (solenoid
valve for instance)
Load 2 (solenoid valve for
instance)
Power supply
white
blue
brown
grey
white
brown
Fig. 27 NPN wiring of both transistor outputs of a version with 2 fixed connectors (software setting "NPN/sink", see
chap. 9.11.8)
