Burkert 8202 ELEMENT User Manual

27
Installation and commissioning
Power supply
12-36 V DC
+
-
Devices such as valves,
pumps,...
Pipes in plastic

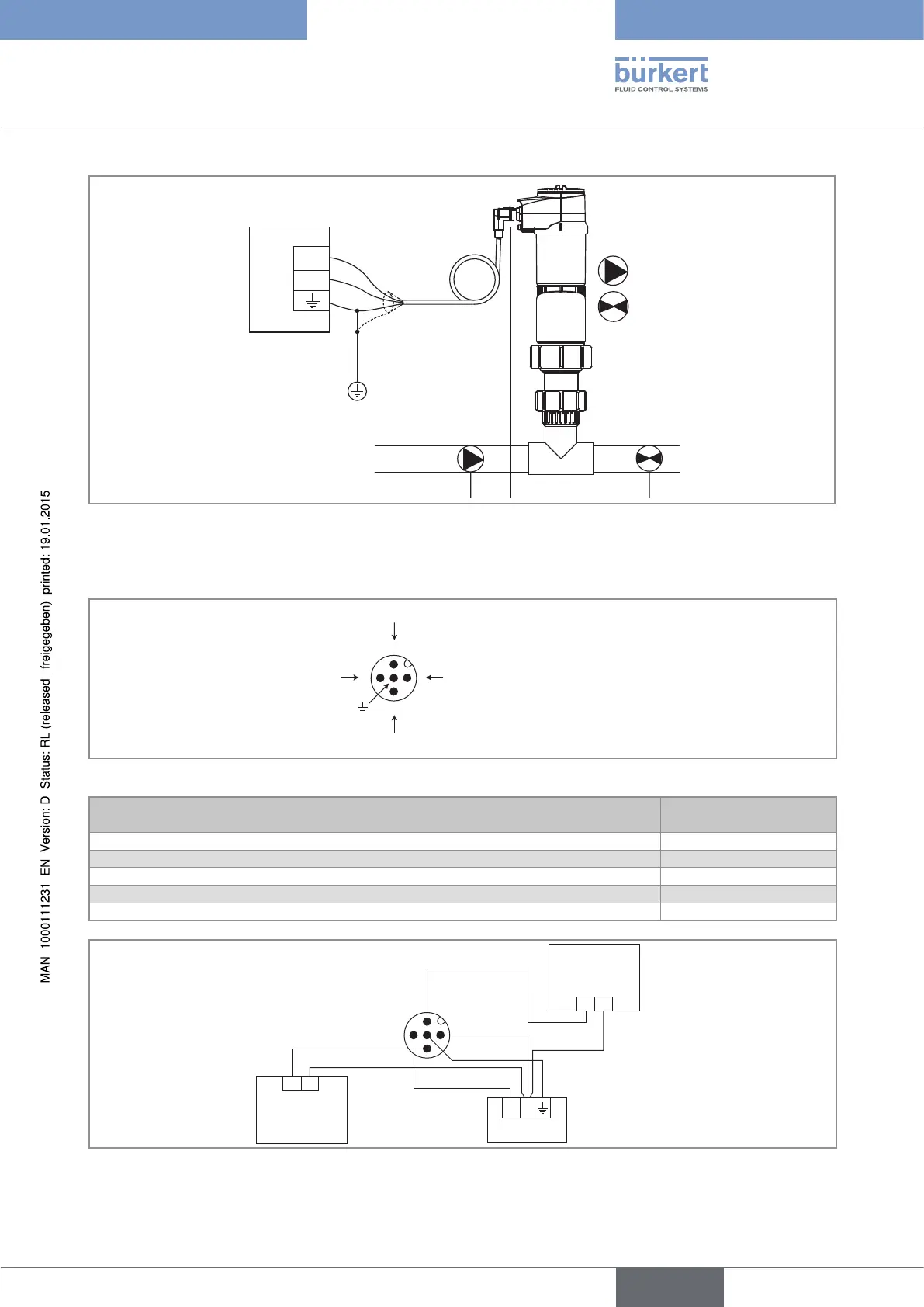

Fig. 1 Equipotentiality skeleton diagram with pipes in plastic
8.3.3. Wiring a version with a single M12 fixed connector
1
2
3
4
V+ (14-36 V DC)
Transistor output 1
Transistor output 2
0V
Fig. 20 Pin assignment of the fixed connector on a version with a single M12 fixed connector
Pin for the female M12 connector available as an accessory (order code
438680)
Colour of the wire
1 brown
2 white
3
blue
4 black
5
grey
14-36 V DC
+ -
1
2
3
4
Load 1 (solenoid valve for instance)
Load 2
(solenoid valve for instance)
Power supply
white
blue
black
brown
grey
Fig. 21 NPN wiring of both transistor outputs (software setting "NPN/sink", see chap. 9.11.8), of a version with 1 M12
fixed connector
English
Type 8202 ELEMENT
