Operating and functions

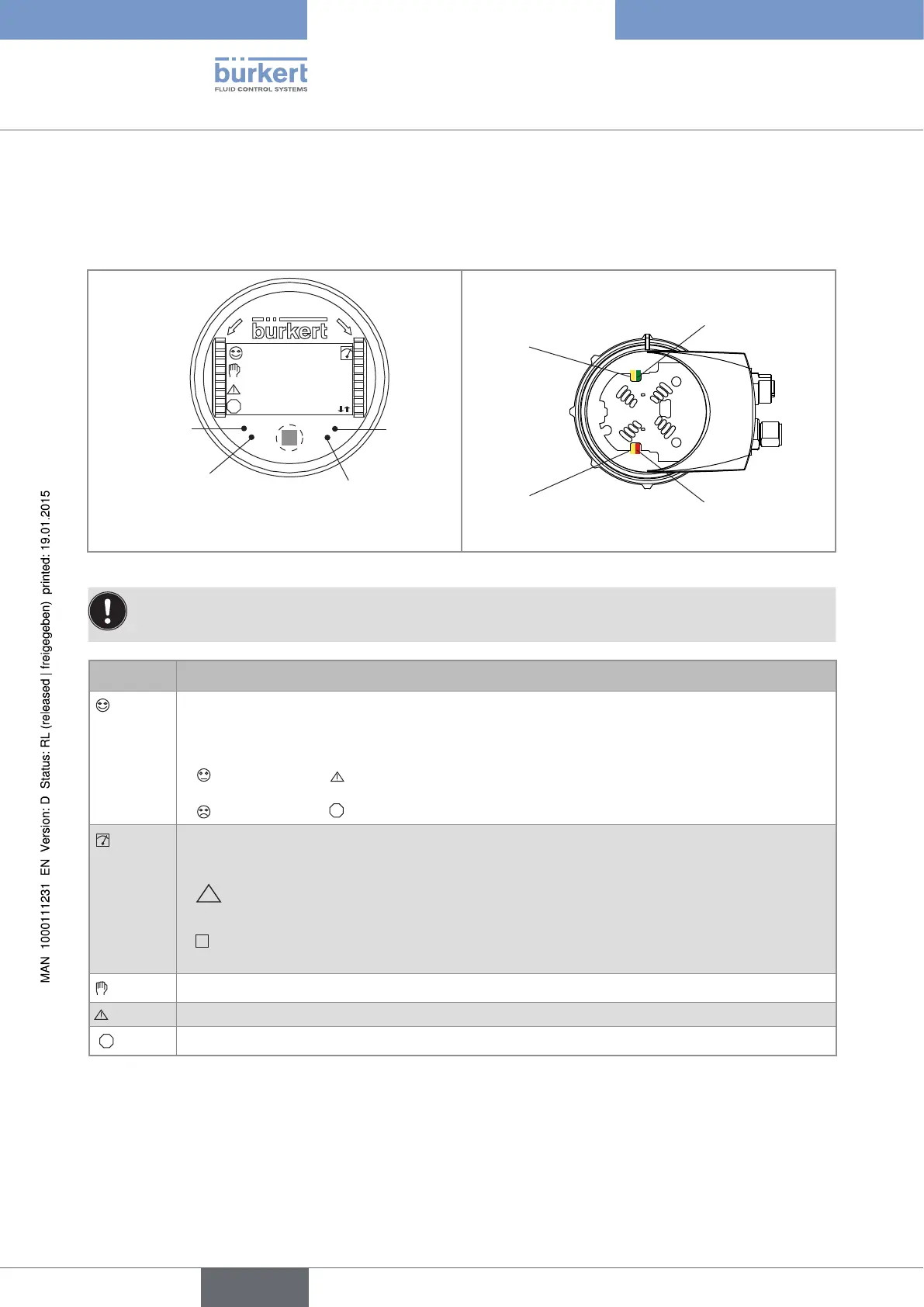

9.7. Description of the display
9.7.1. Description of icons and LEDs
O
P
E
N
L
O
C
K
mV_pH
1423 mV
TempC
23.8 °C
ERR
Red LED:
shows an error;
see chap. 10.5
not used
Yellow LED: shows that transis-
tor 1 is switched
Yellow LED: shows that transistor 2
is switched
Red LED: shows an error;
see chap. 10.5
Yellow LED: shows that
transistor 2 is switched
Green LED: shows that
the device is energized
Yellow LED: shows that
transistor 1 is switched
Fig. 34 Position of the icons and description of the LEDs
The LEDs of the display module are duplicated on the electronic board that is located under the display
module: these LEDs become visible when the transmitter is not equipped with the display module.
Icon Possible cause and alternatives
Probe in good condition and fluid temperature within the set range.
If the monitoring of the impedance on the electrodes and/or the fluid temperature has been acti-
vated, the alternative icons in this position are:
•
, associated with : see chap. 9.13.2, 9.13.3, 9.15.1 and 10.5
•
, associated with
ERR
: see chap. 9.13.2, 9.13.3, 9.15.1 and 10.5
The device is measuring.
The alternative icons in this position are:
•
HOLD
!
flashing: HOLD mode activated (see chap. 9.12.1)
•
T
: running check that the outputs are working and behaving correctly (see chap. 9.14.2 and
9.14.3)
"maintenance" message; see chap. 9.12.4, 9.15.1 and 10.5
"warning" message; see chap. 9.11.10, 9.12.4 9.13.2, 9.13.3, 9.15.1 and 10.5
ERR
"error" message; see chap. 9.13.2, 9.13.3, 9.15.1 and 10.5
