Installation
2.Installsealingrings
→ Pull the form seal onto the actuator cover (smaller diameter points upwards).
→ Check that the O-rings are correctly positioned in the pilot air ports.
Whenthepositionerisbeinginstalled,thecolletsofthepilotairportsmustnotbettedtothe
actuator.
Form seal
Pilot air port
Caution:
collets must not be
tted!
Installation of the
form seal

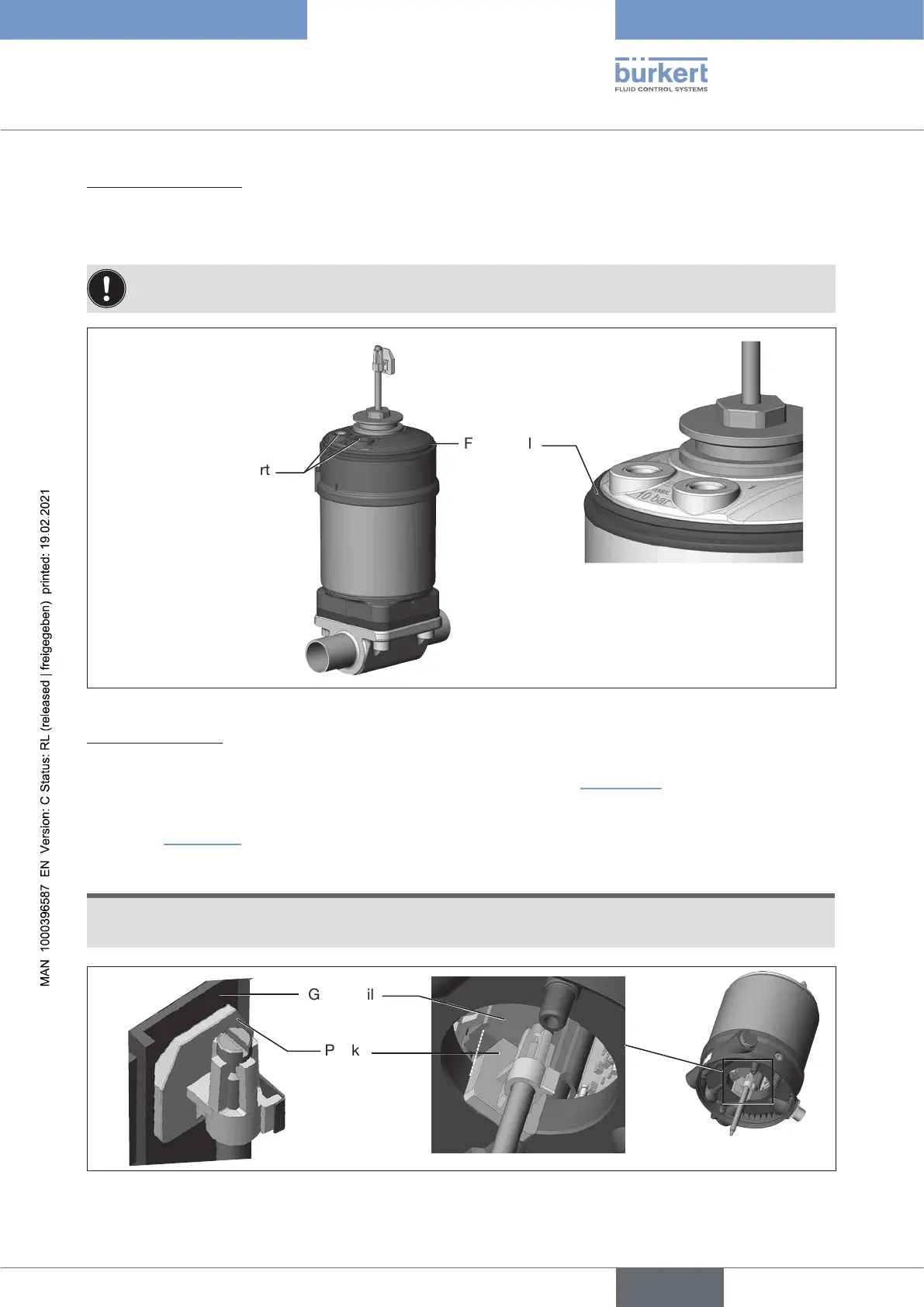

Figure 20: Installation of the sealing rings, series 2103, 2300 and 2301
3.Installpositioner
→ Align the puck and the positioner until
1. the puck can be inserted into the guide rail of the positioner (see “Figure21”)
and
2. the connection pieces of the positioner can be inserted into the pilot air ports of the actuator (see
also “Figure22”).
ATTENTION!
Damagedprintedcircuitboardormalfunction.
▶ Ensurethatthepuckissituatedatontheguiderail.
Guide rail
Puck
Figure 21: Aligning the puck
