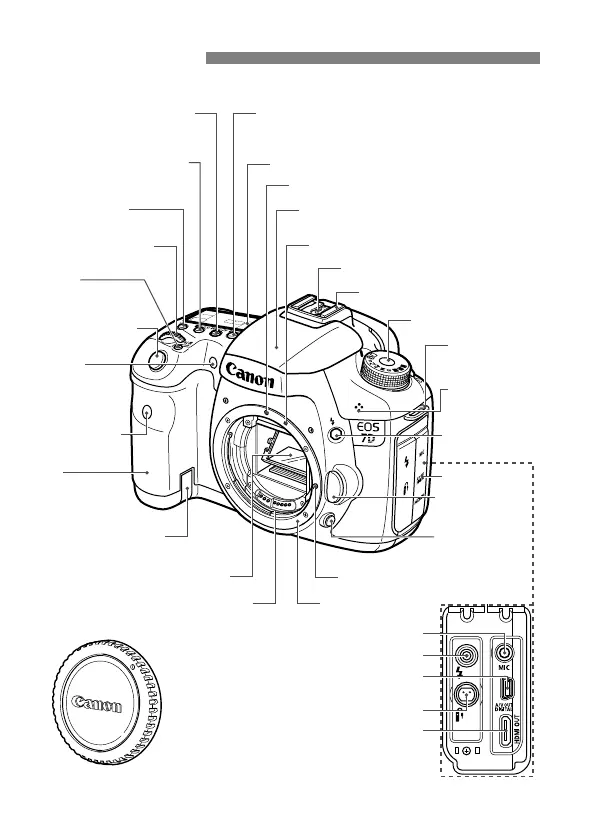

Nomenclature
HDMI mini OUT terminal (p.185)
Remote control terminal (p.112) (N3 type)
PC terminal (p.134)
Hot shoe (p.133)
Built-in flash/AF-assist beam
(p.115/90)
EF-S lens mount index (p.31)
Grip
(Battery
compartment)
DC coupler cord
hole (p.250)
Flash-sync contacts
Shutter button
(p.35)
Mode Dial (p.20)
Lens lock pin
Lens mountContacts (p.13)
Body cap (p.31)
Depth-of-field
preview button
(p.105)
Red-eye
reduction/
Self-timer lamp
(p.116/98)
Strap mount
(p.23)
Lens release
button (p.32)
Terminal cover
Mirror (p.113,203)
<D> Flash
button (p.115)
<n> Metering mode
selection/White balance
selection button (p.107/72)
<o> AF mode
selection/Drive mode
selection button (p.88/97)
<m>
ISO speed setting/
Flash exposure compensation
button (p.64/117)
<6> Main Dial
(p.36)
<B>
Multi-function
button (p.92,118)
<U> LCD panel
illumination button (p.37)
LCD panel (p.18)
EF lens mount index (p.31)
Remote control
sensor (p.114)
Microphone
(p.162)
Audio/video OUT/Digital terminal (p.184,206)
External microphone IN terminal (p.155)
