■ Procedure

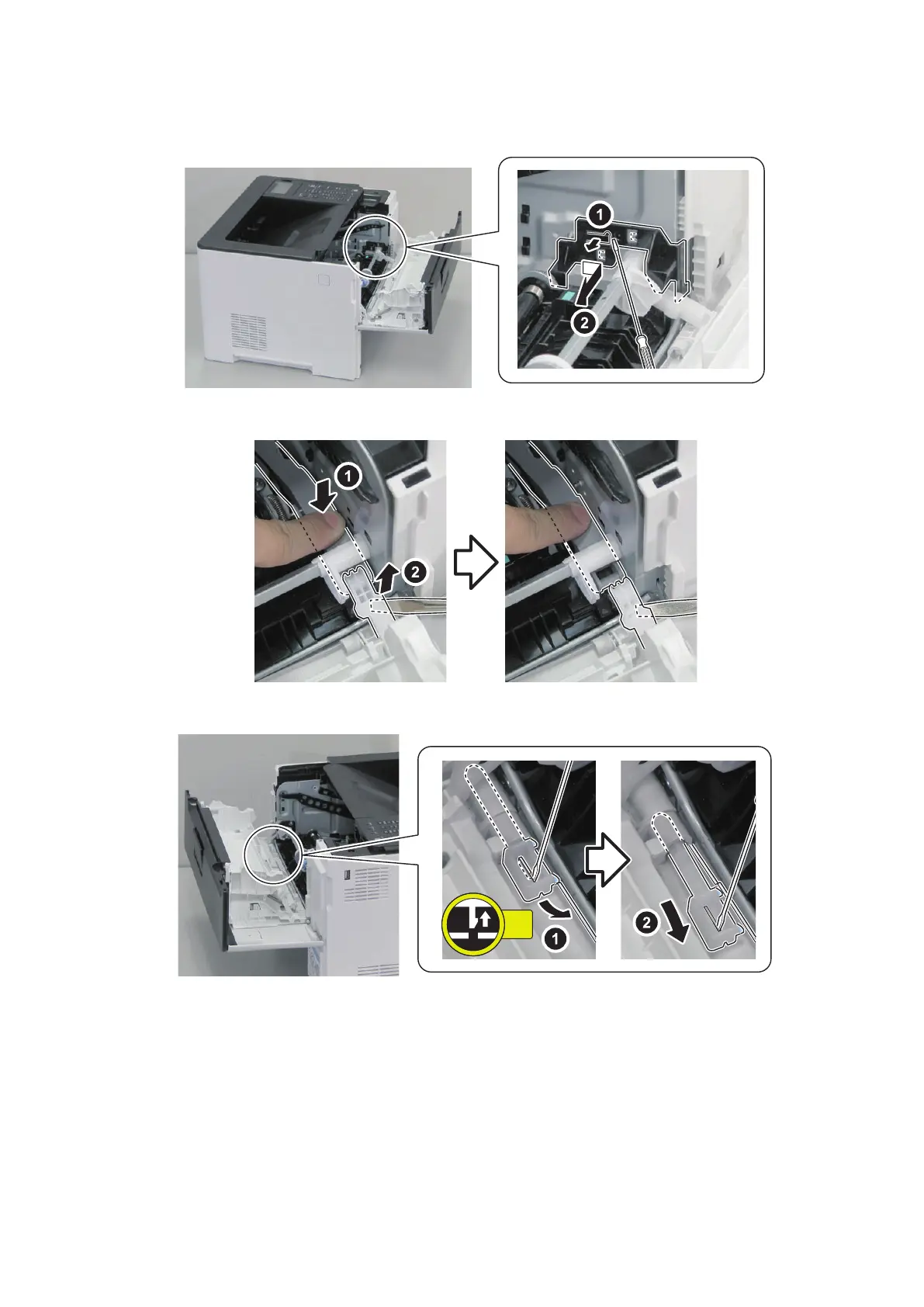

1. Remove the guide.

2. Free the Link Arm.

3. Remove the shaft.

5. Parts Replacement and Cleaning

138
