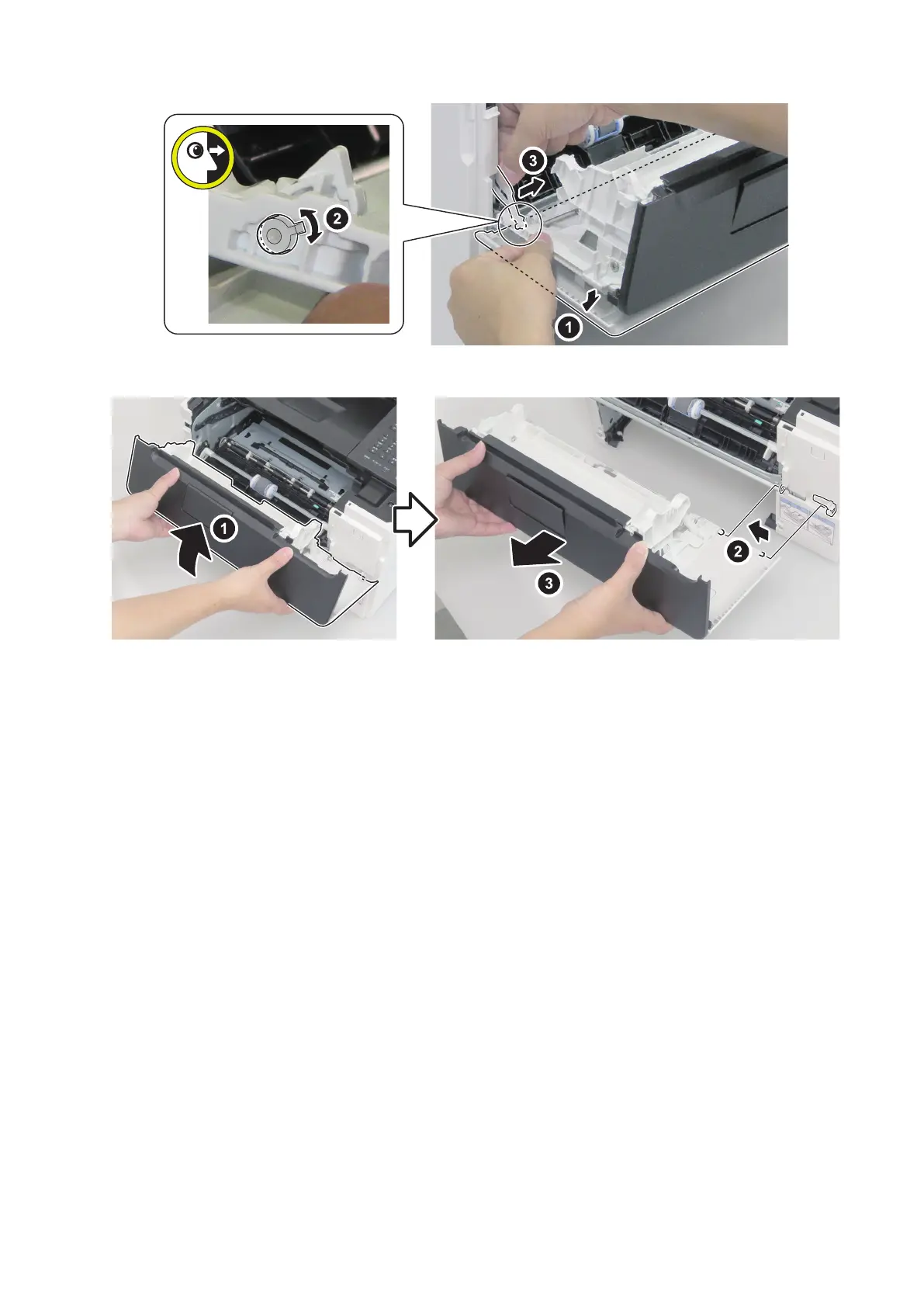

4. Open the Front Cover, adjust the direction of the cut-off of the boss hole, and release the hinge.

5. Remove the Cartridge Cover.

5. Parts Replacement and Cleaning

139
