■ Procedure

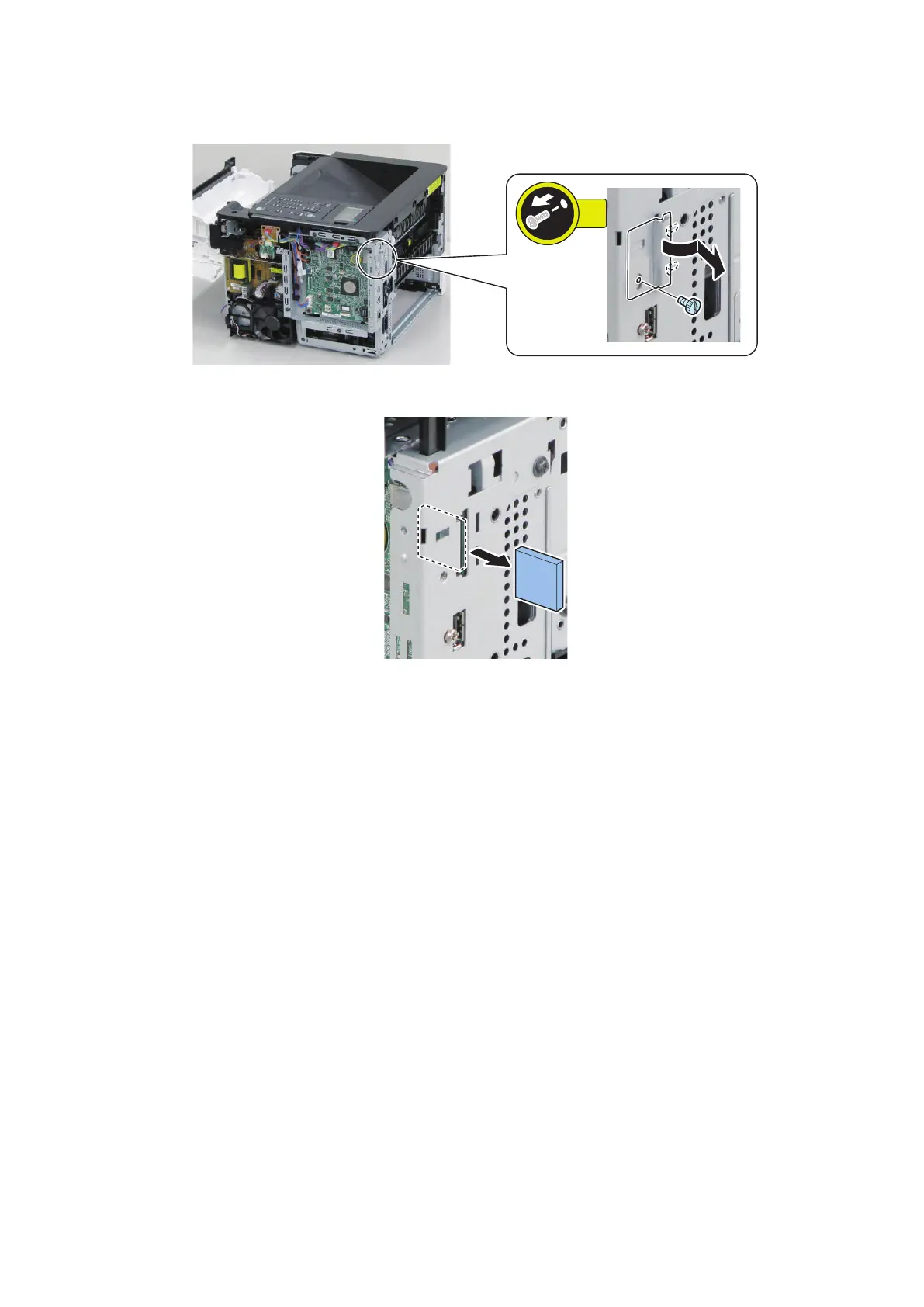

1. Remove the SD Card Slot Cover.

2. Remove the SD Card. (If the SD Card had been used)

5. Parts Replacement and Cleaning

141
