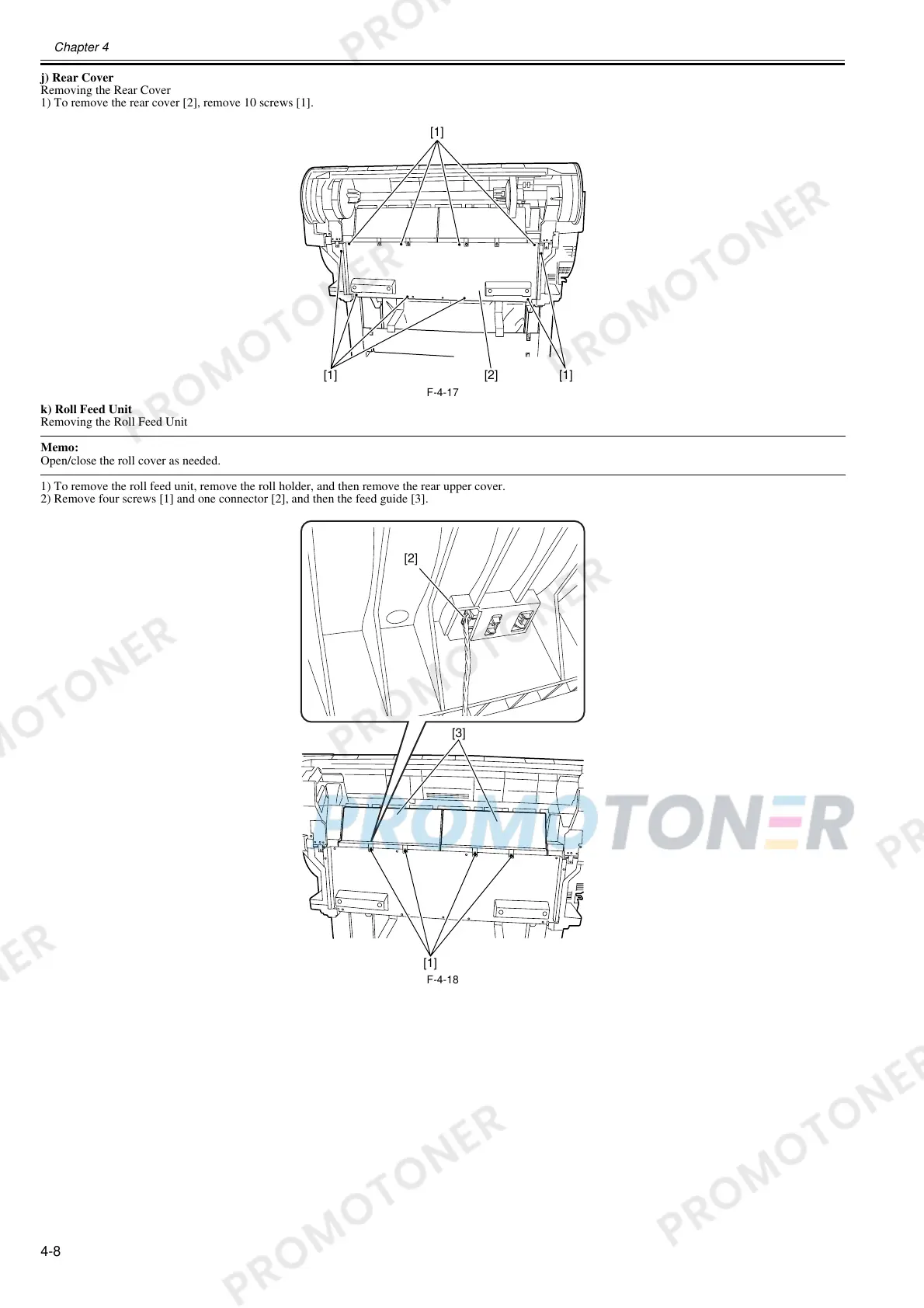

j) Rear Cover
Removing the Rear Cover
1) To remove the rear cover [2], remove 10 screws [1].
F-4-17
k) Roll Feed Unit
Removing the Roll Feed Unit
Memo:
Open/close the roll cover as needed.
1) To remove the roll feed unit, remove the roll holder, and then remove the rear upper cover.
2) Remove four screws [1] and one connector [2], and then the feed guide [3].
F-4-18
[1]
[1] [1][2]
[2]
[3]
[1]
